Specifications

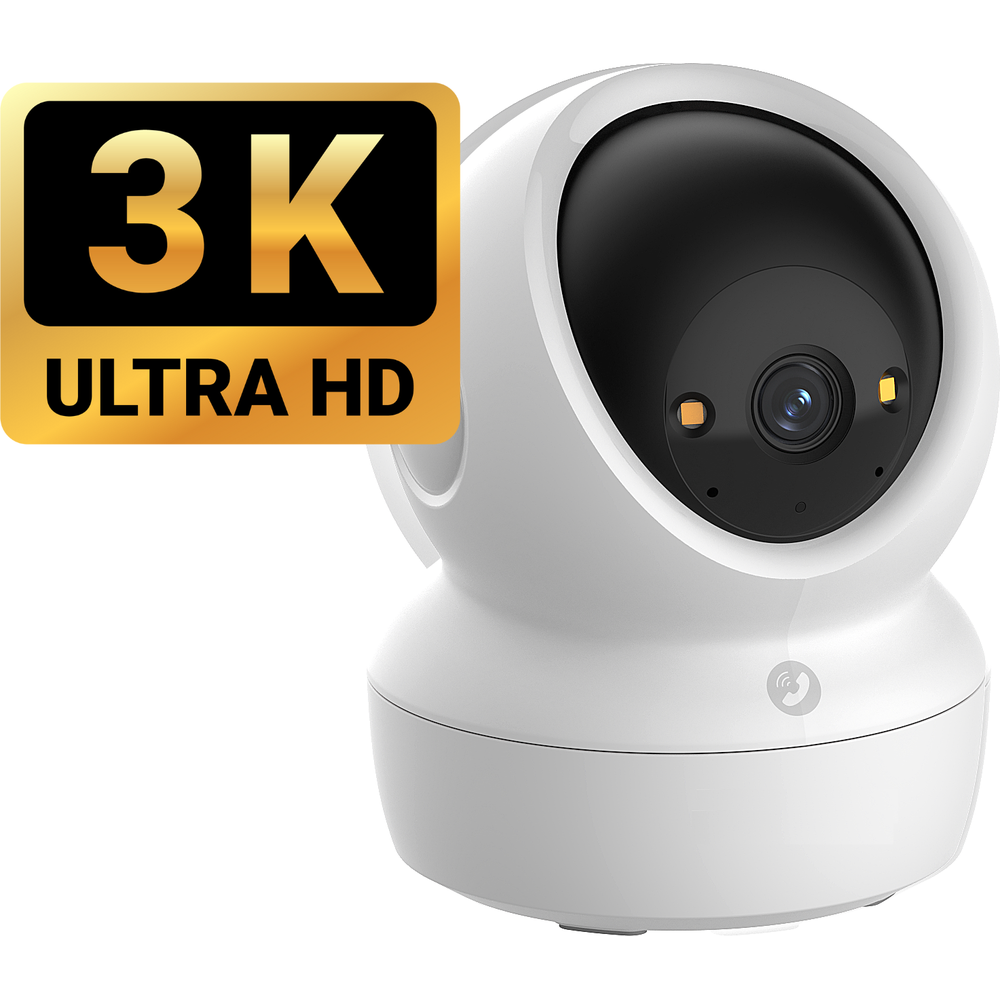

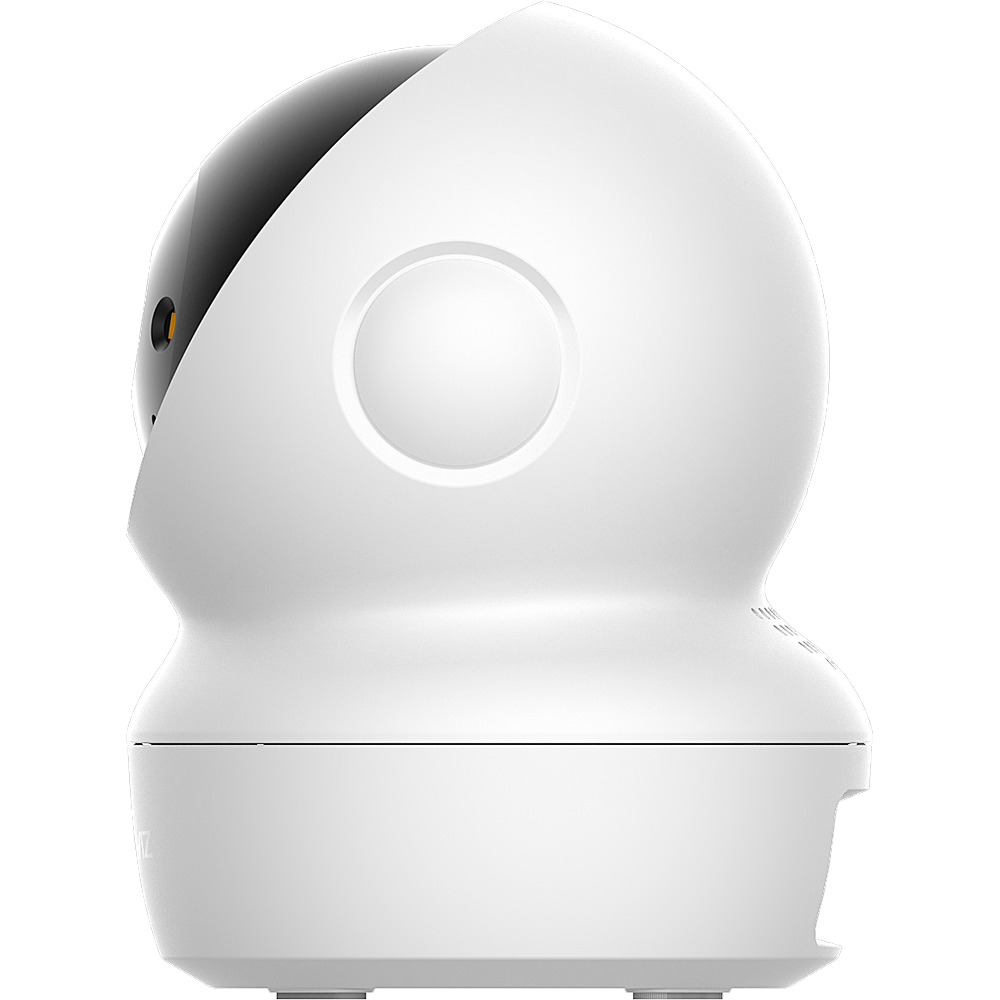

CS-H6c-R200-1Q5WFL

Camera

Image Sensor

1/3" Progressive Scan CMOS

Shutter Speed

Self-adaptive shutter

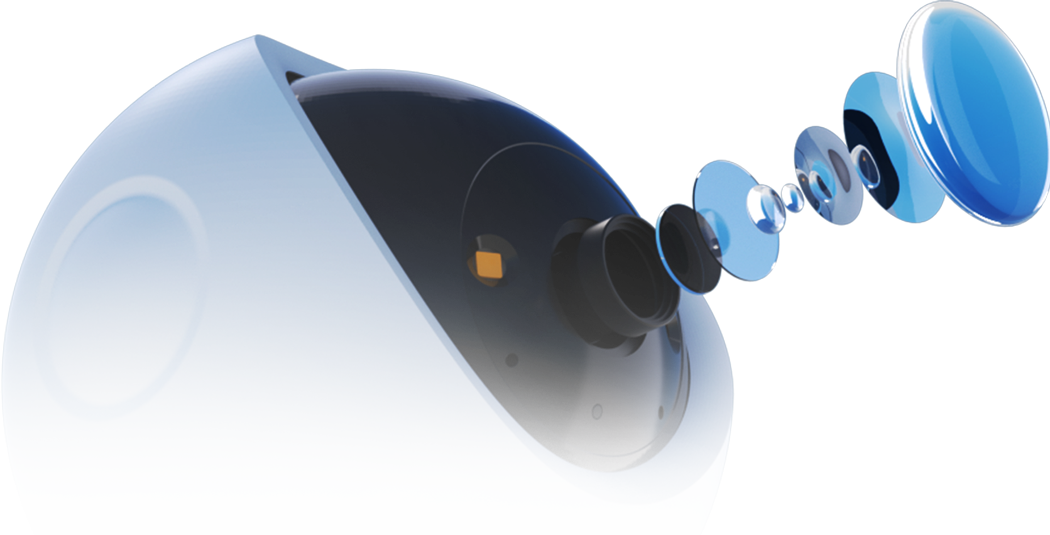

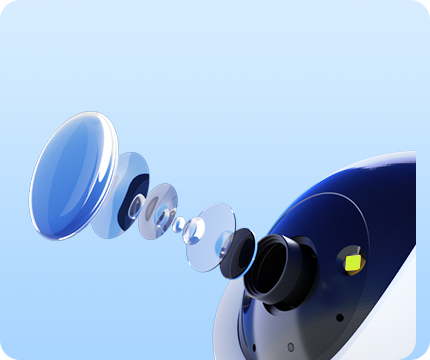

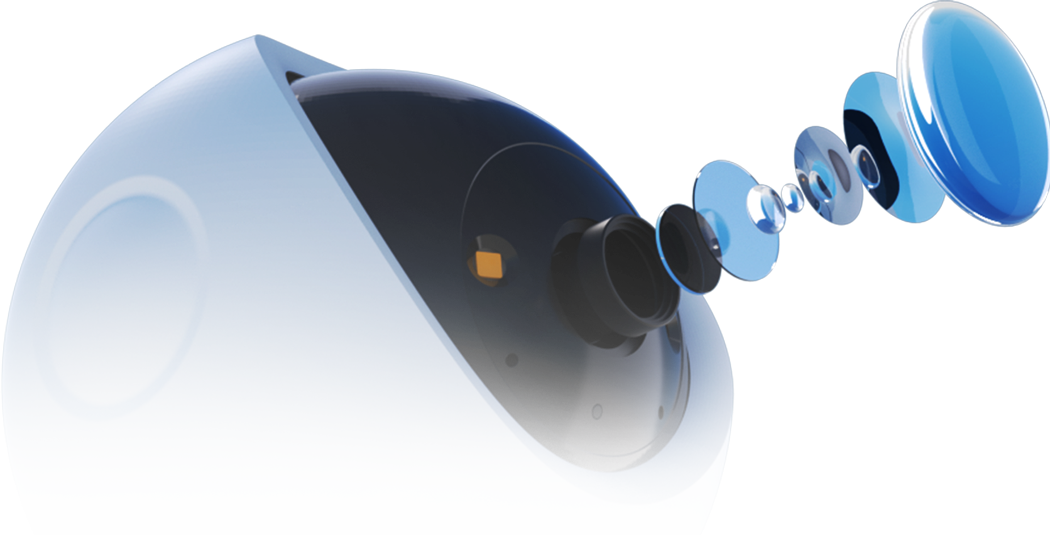

Lens

4mm@F1.6, view angle: 105°(Diagonal), 88° (Horizontal), 46°(Vertical)

Lens Mount

M12

Day & Night

IR-cut filter with auto-switching

DNR

3D DNR

WDR

WDR

Compression

Video Compression

H.264 / H.265

Video Bit Rate

Adaptive bit rate


Max. Resolution

3K (2880 × 1620）

Frame Rate

Self-adaptive during network transmission

Network

Smart Alarm

Motion Detection, AI-Powered Human Shape Detection

Wi-Fi Pairing

AP pairing

Protocol

EZVIZ Cloud Proprietary Protocol

Interface Protocol

EZVIZ Cloud Proprietary Protocol

Interface

Storage

Supports microSD card (max. 512 GB)

Power

Type-C

Wired Network

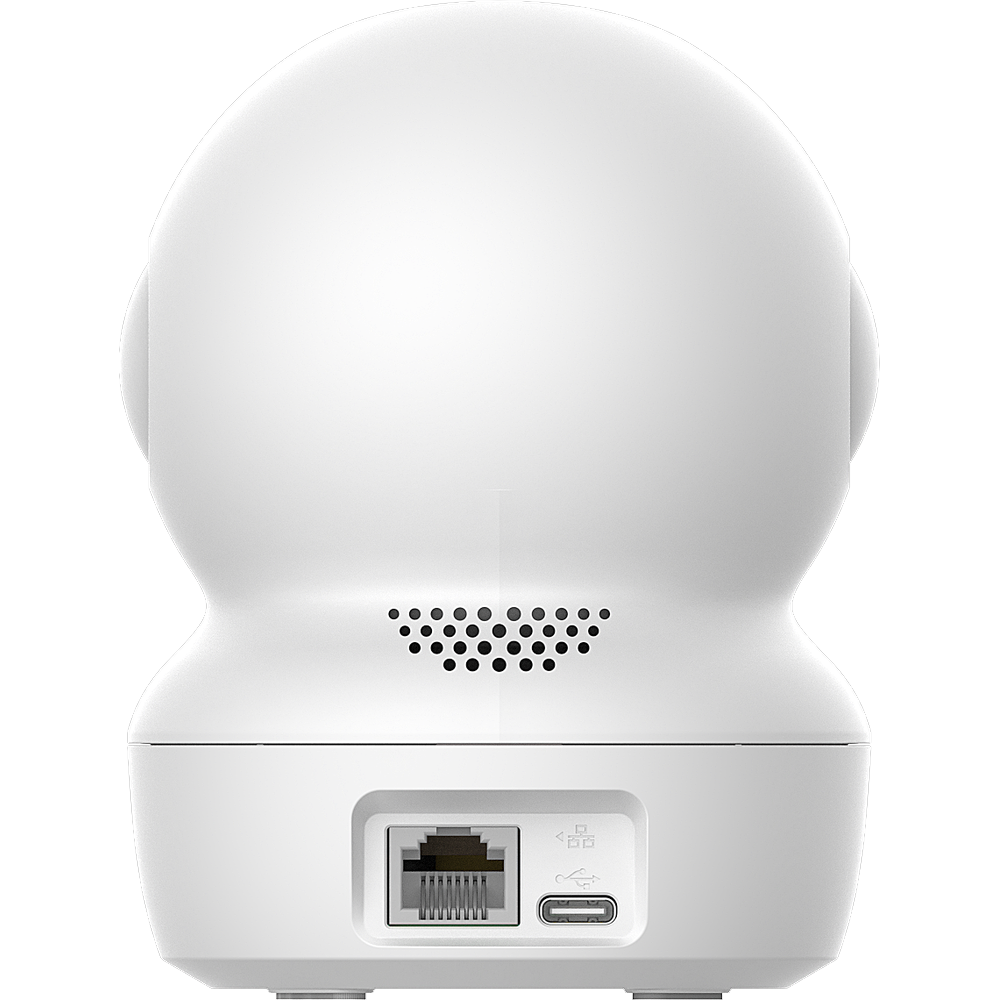

RJ45 × 1 (10 M / 100 M self-adaptive Ethernet port)

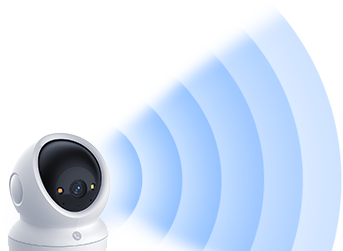

Wi-Fi

Standard

IEEE802.11a, 802.11b, 802.11g, 802.11n,

Frequency Range

2.4 GHz: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth

2.4G: Supports 20 MHz

Security

WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate

11b 11Mbps, 11g 54Mbps, 11n MCS7, 11a 54Mbps, 11ac MCS9.11ax MCS11

Output Power (EIRP)

19 dBm

Antenna Gain

1.9 dBi

General

Operating Conditions

-10°C to 45°C (14°F to 113 °F ) Humidity 95% or less (non-condensing)

Power Supply

DC 5V / 2A

Power Consumption

Max. 8 W

IR Range

Max. 10 meters (32.81ft)

Dimensions

88 × 88 × 117.3 mm (3.46 × 3.46 × 4.61 inch)

Packaging Dimensions

103 × 103 × 168 mm (4.06 × 4.06 × 6.61 inch)

Net Weight

222 g (0.49 lb)

In the box

In the box

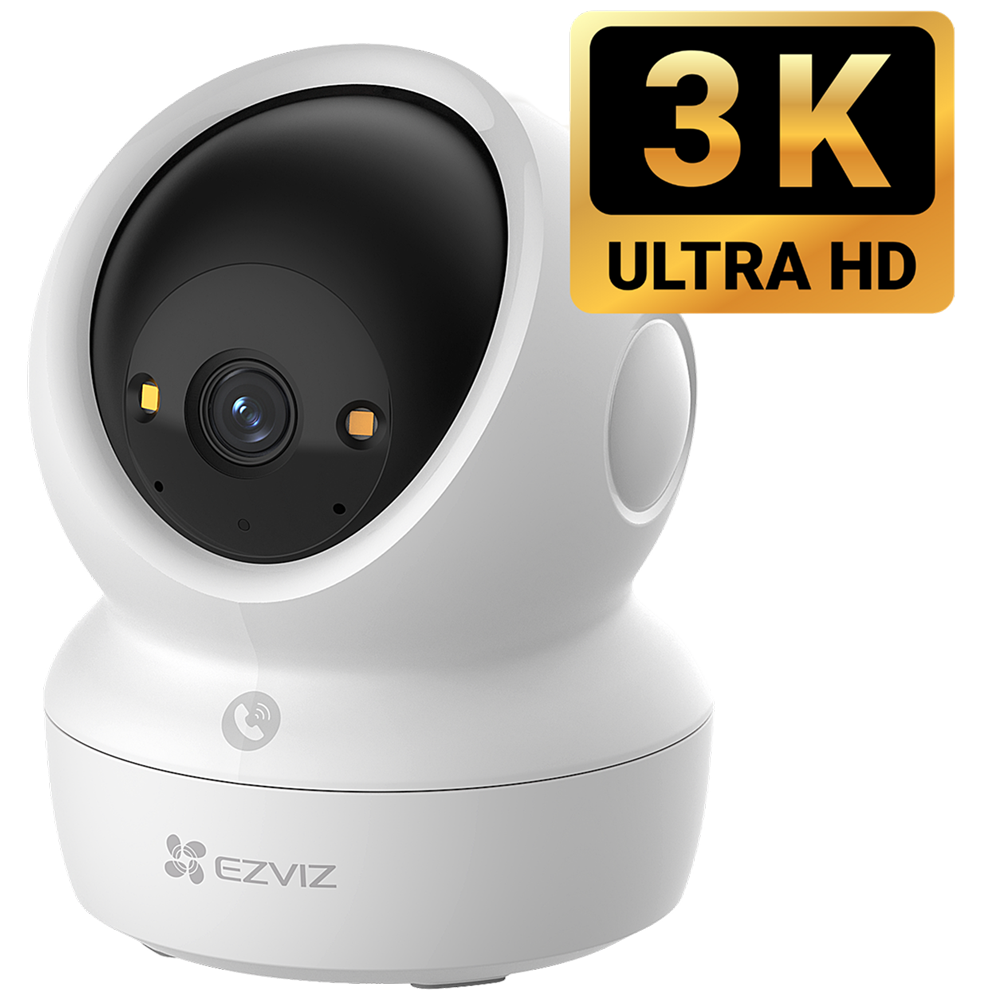

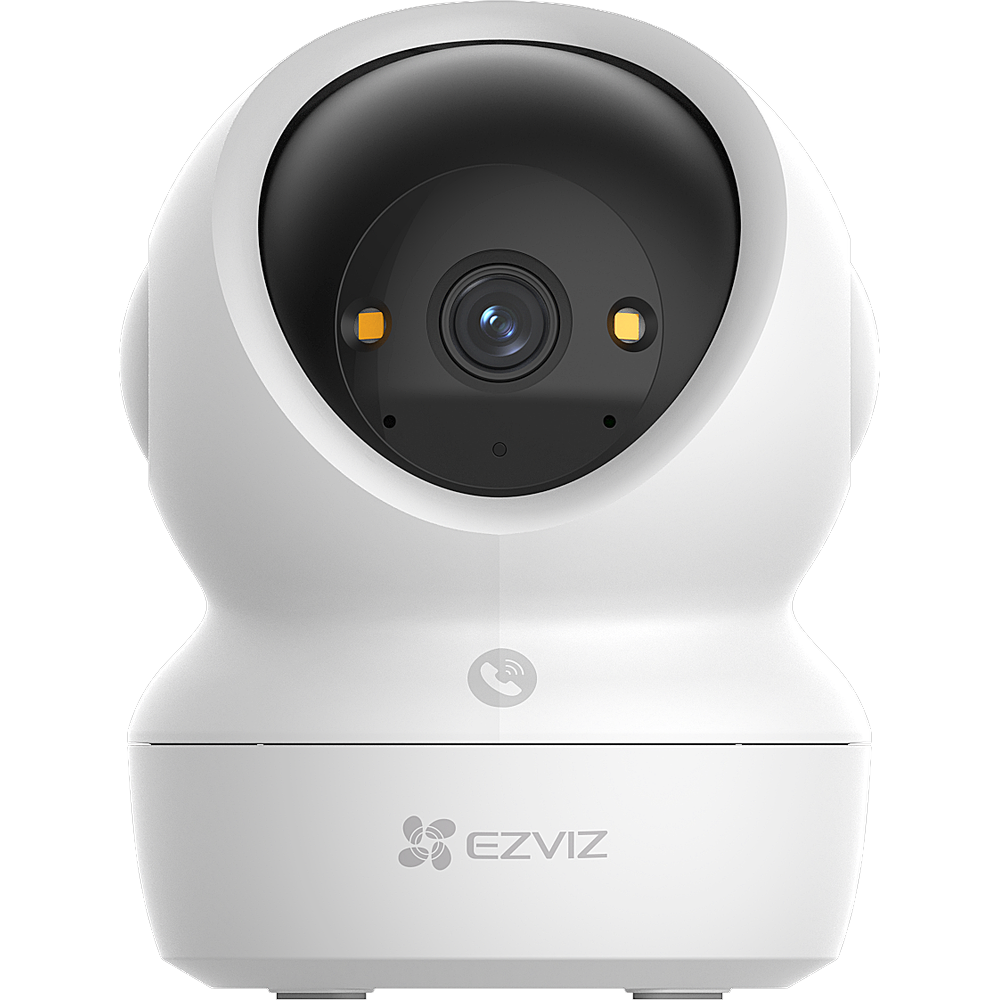

- H6c G1 Camera
- Power Adapter
- Power Cable
- Drill Template
- Mounting Plate
- Screw Kit
- Regulatory Information × 2
- Quick Start Guide
