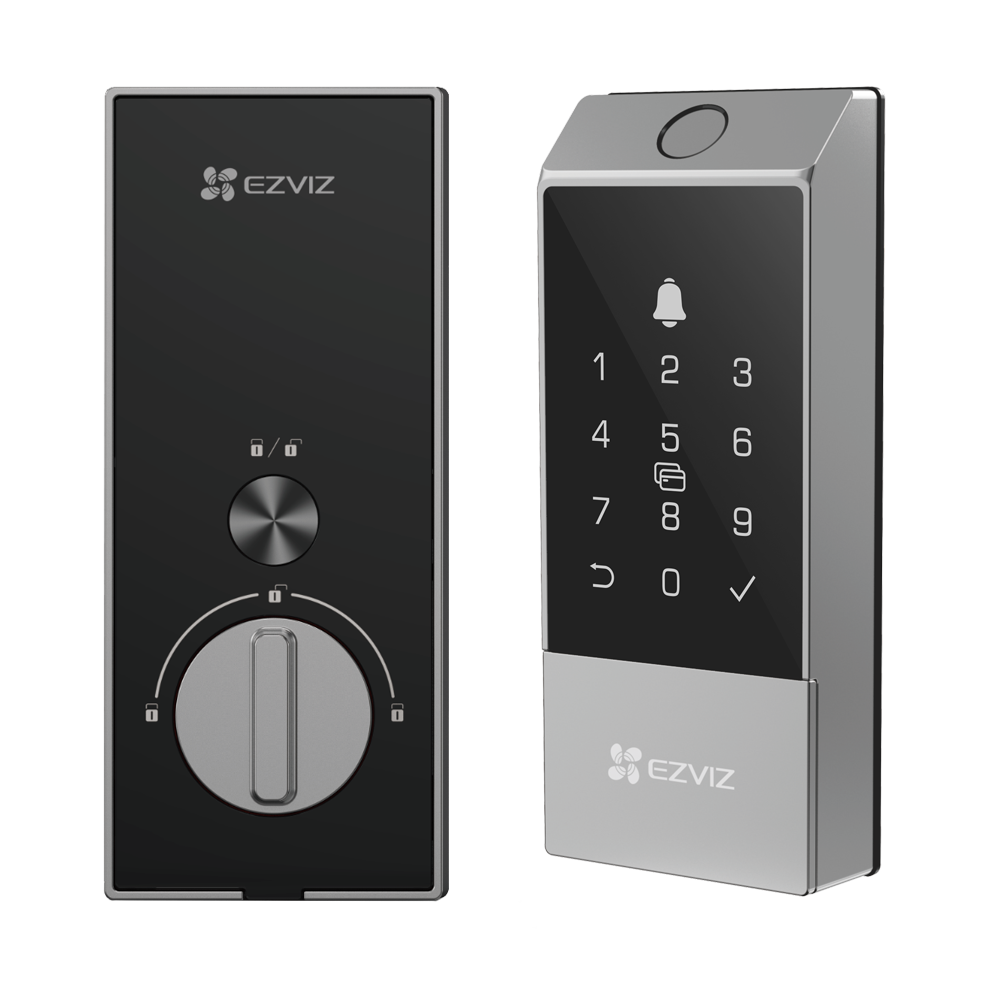

Model

CS-DL04 Pro

Technical Specification

Product material

Aluminum + Plastic

Dimensions

Front Panel: 160 × 67 × 25 mm (6.29 × 2.63 × 0.98 inch) Rear Panel: 166 × 70 × 28.5 mm (6.53 × 2.75 × 1.12 inch)

Communication

EZVIZ Connect 2.4G Wi-Fi

Keyless unlocking

Supports

Bluetooth Key

Supports (max. 50 groups)

Working power

4 AA Alkaline Batteries

Working condition

-20°C ~ 60°CHumidity 10% ~ 95% (Non-condensing)

APP Function

Lock status check

Supports

User management

Supports

Message notification

Supports

Privacy mode

Supports (enable via EZVIZ App)

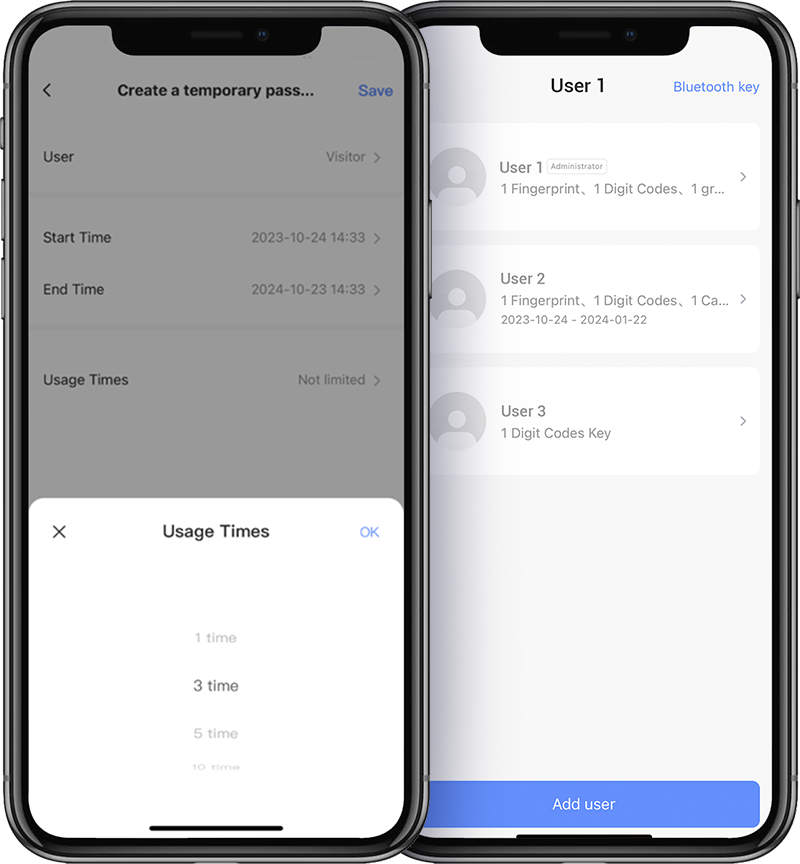

Temporary passcode

Supports

Remote unlock

Supports

Real-time notification

Supports

EZVIZ Connect

Supports

Low battery alert

Supports

Front Panel Function

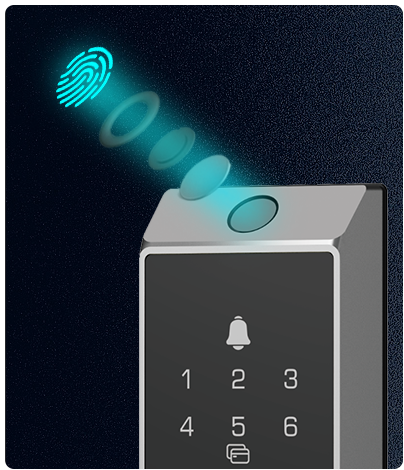

Fingerprint unlock

Supports (max. 50 groups)

Password unlock

Supports (max. 50 groups, 6 to 10 digits)

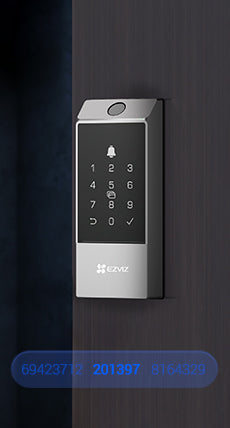

Virtual passcode

Supports

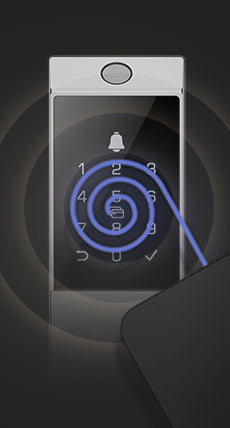

Proximity card unlocking

Supports

Electric doorbell

Supports

Low battery alert

Supports

Anti-tamper alert

Supports

Anti-test alert

Supports (enter 5 errors in 5 minutes, locked for 3 minutes)

In the box

In the box

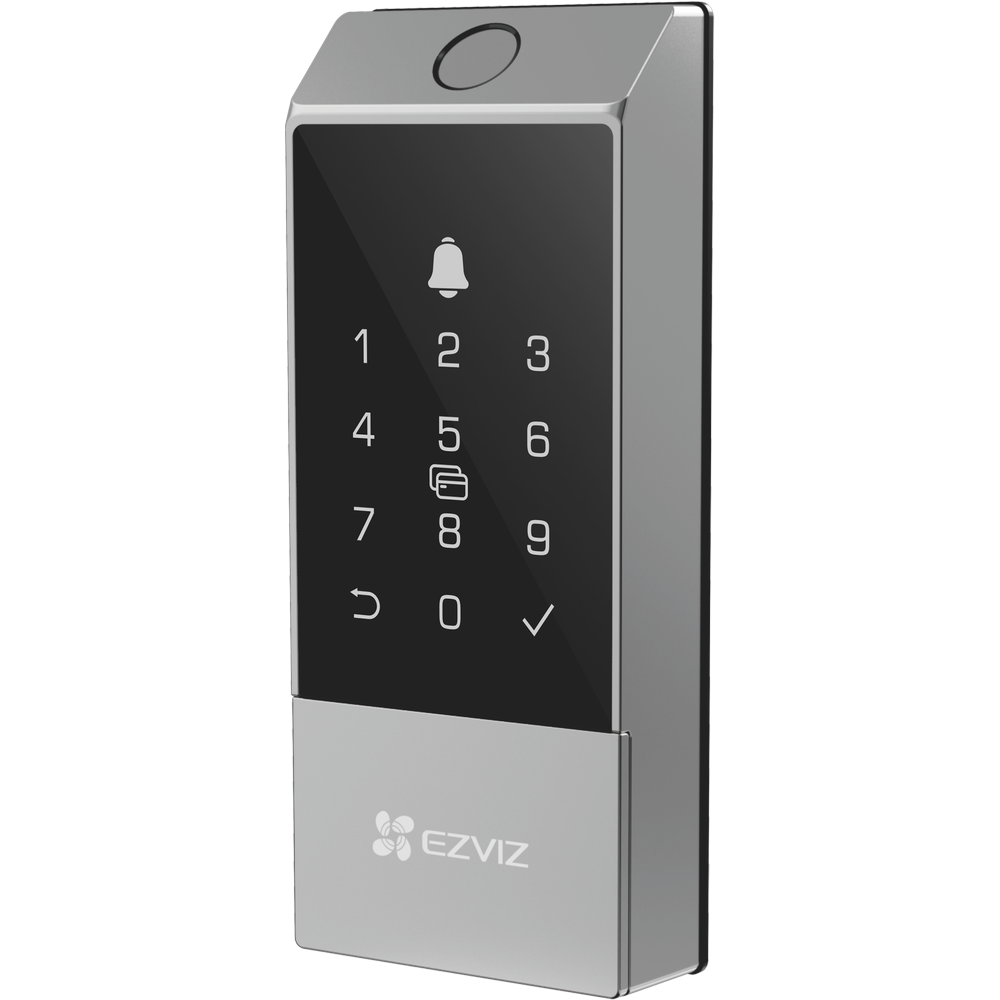

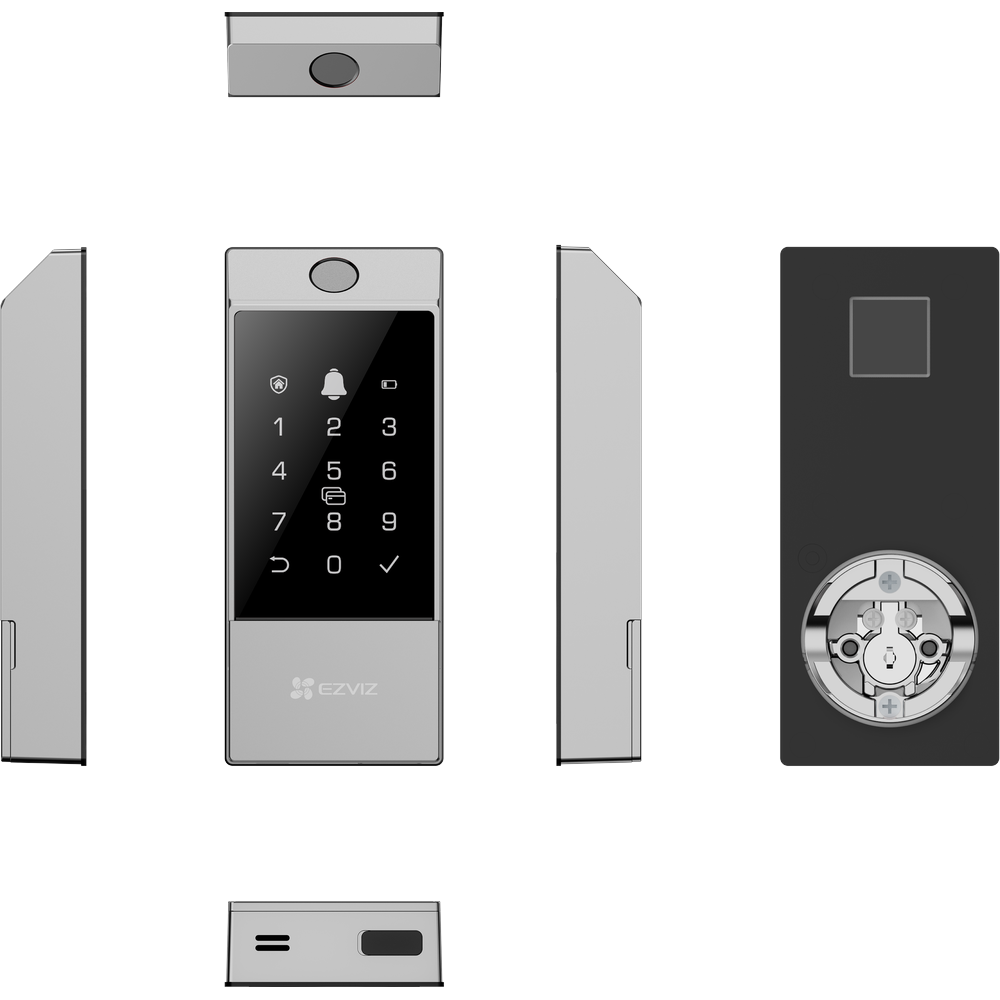

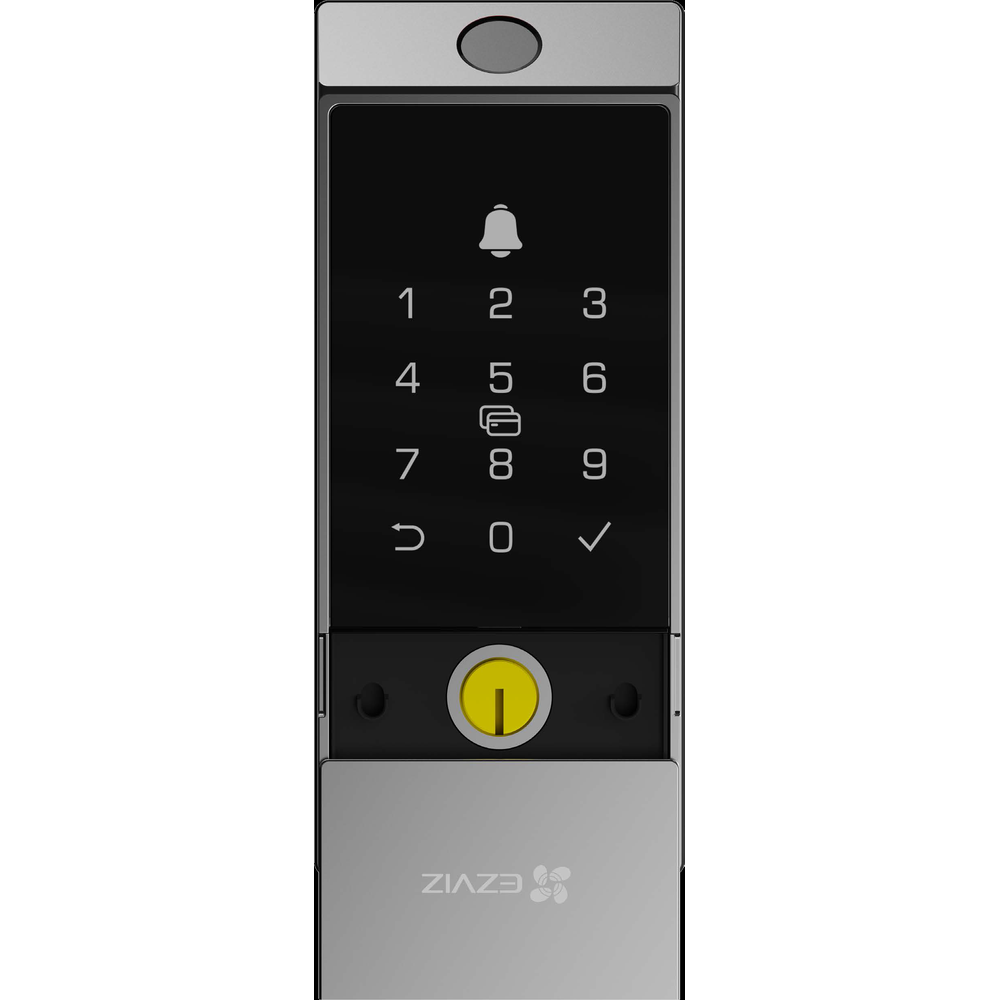

- DL04 Pro Front Panel

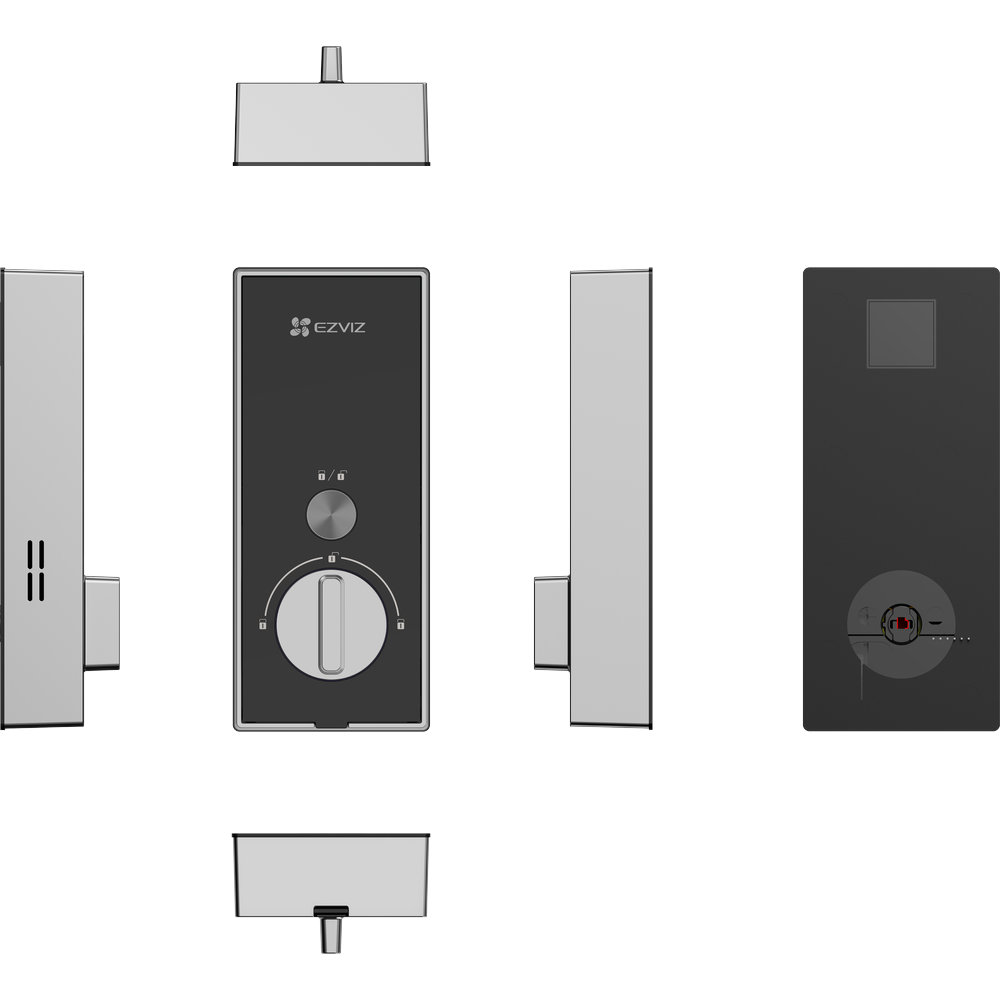

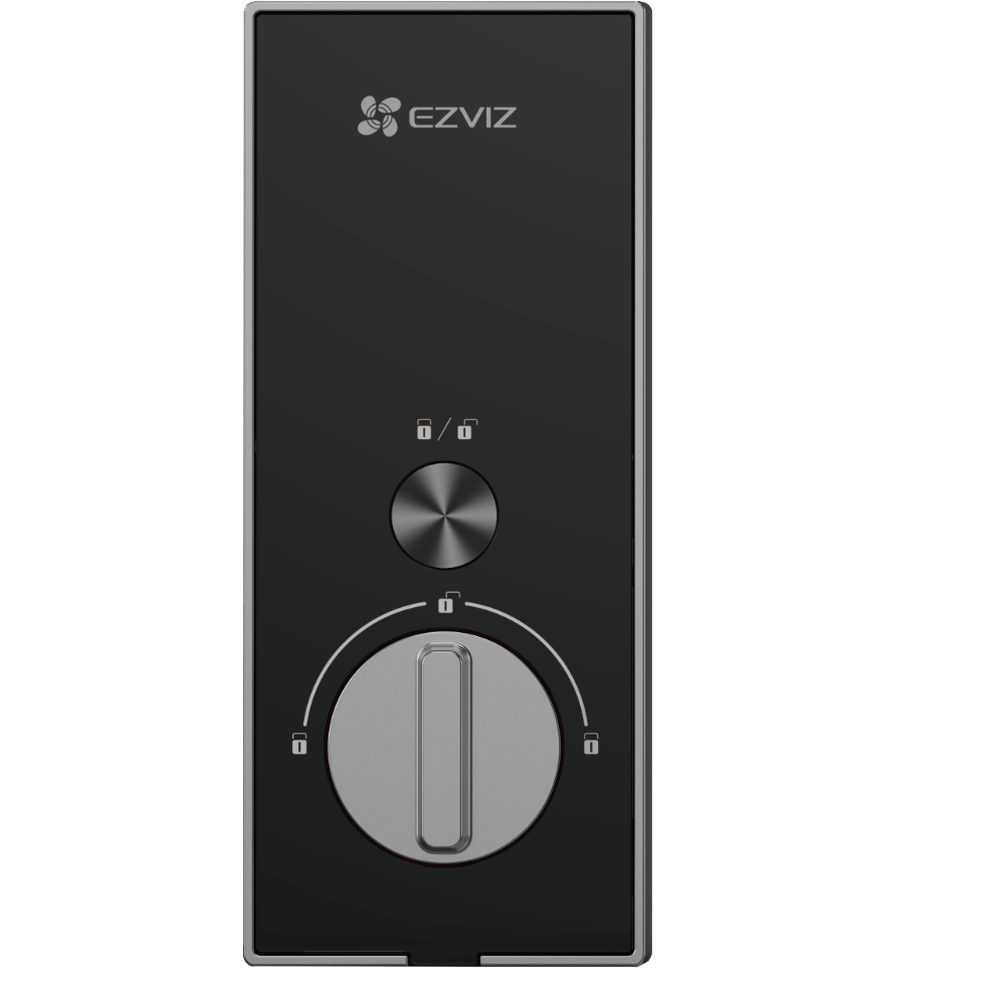

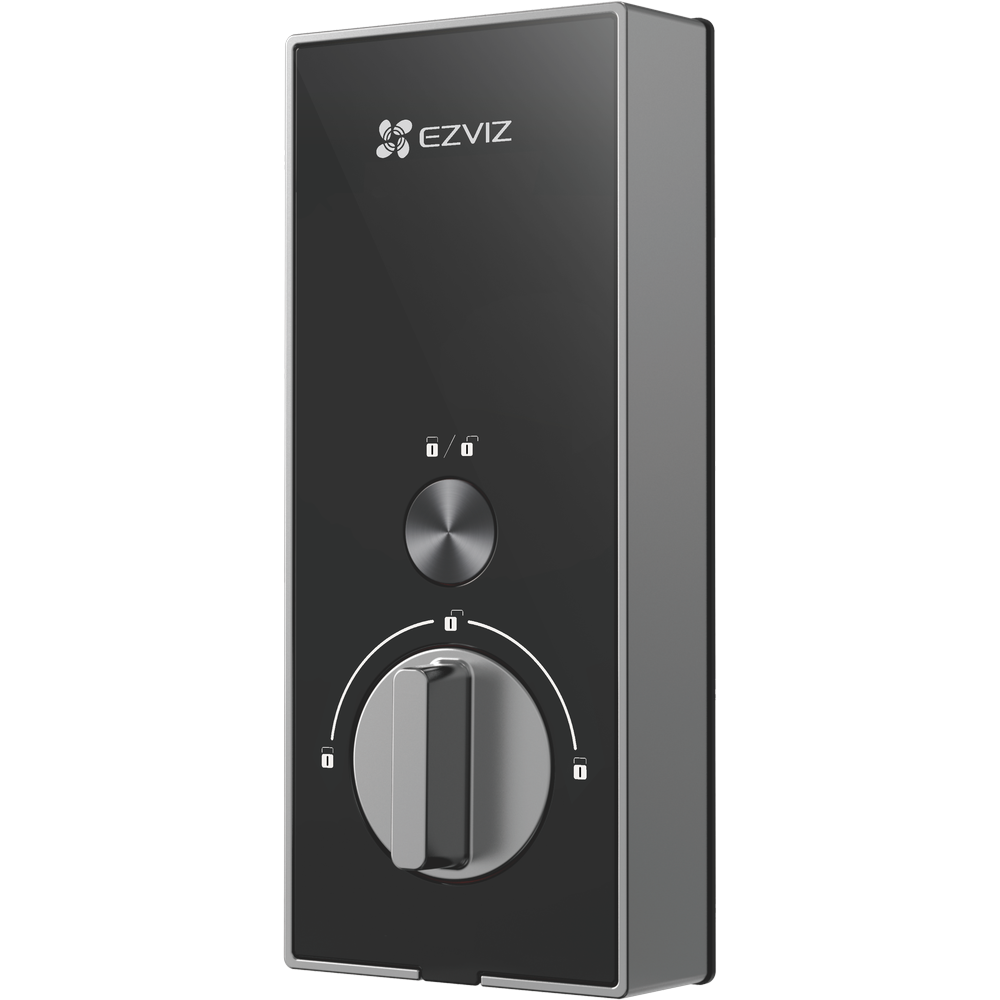

- DL04 Pro Rear Panel
- Screw Kit
- Mounting Bracket
- AA-Sized Battery × 4
- Proximity Card × 2
- Lock Cylinder Kit
- Lock Body Kit
- Hole Templet
- Regulatory Information
- Regulatory Information
- Quick Start Guide
