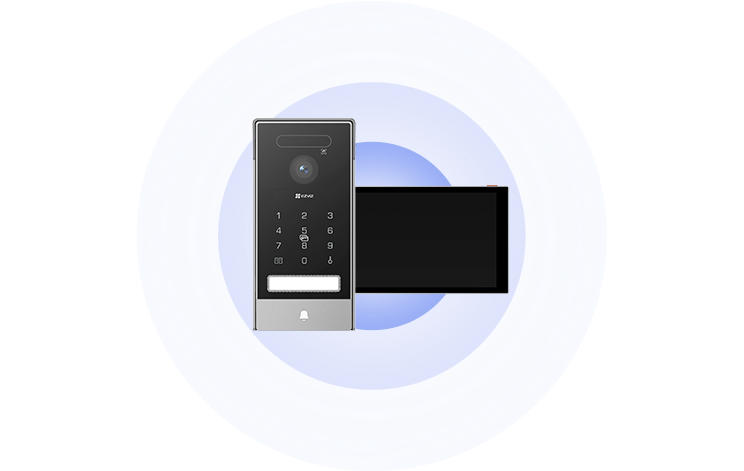

Model

CS-HP7-R400-1W2TFD (Pro)

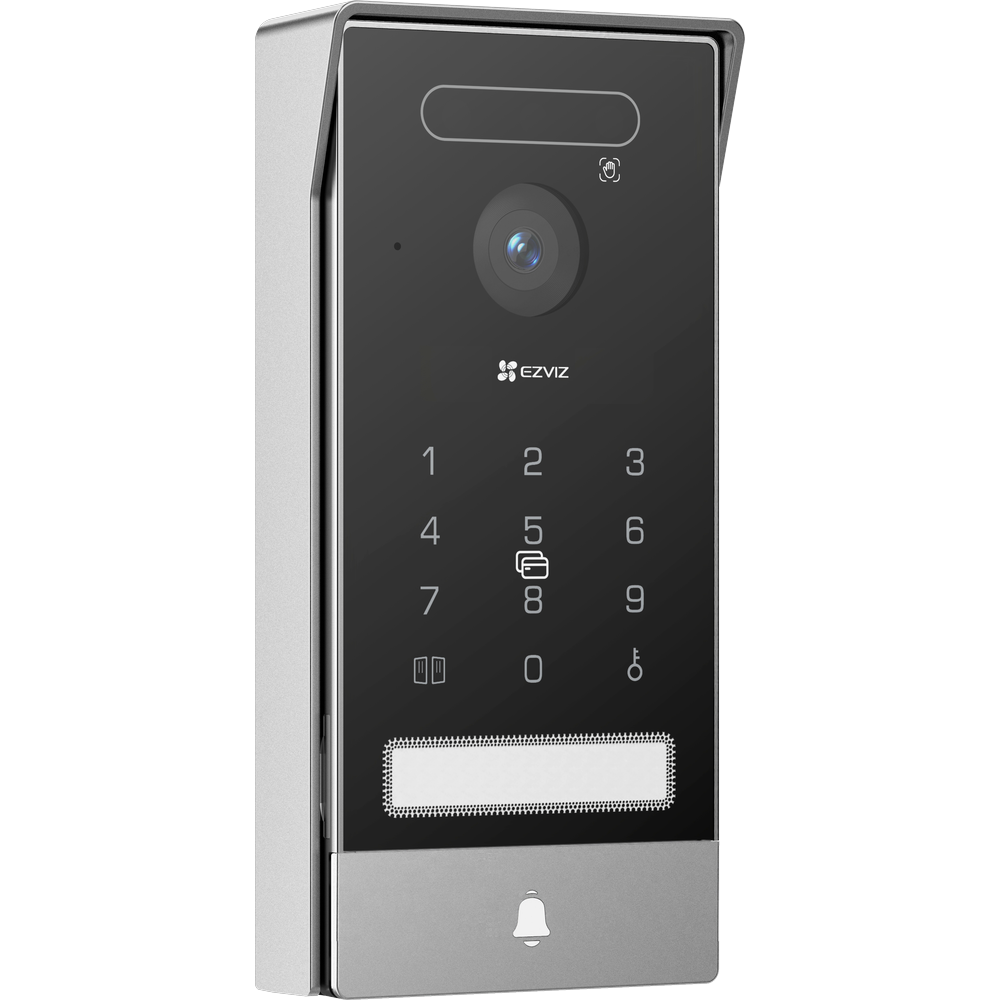

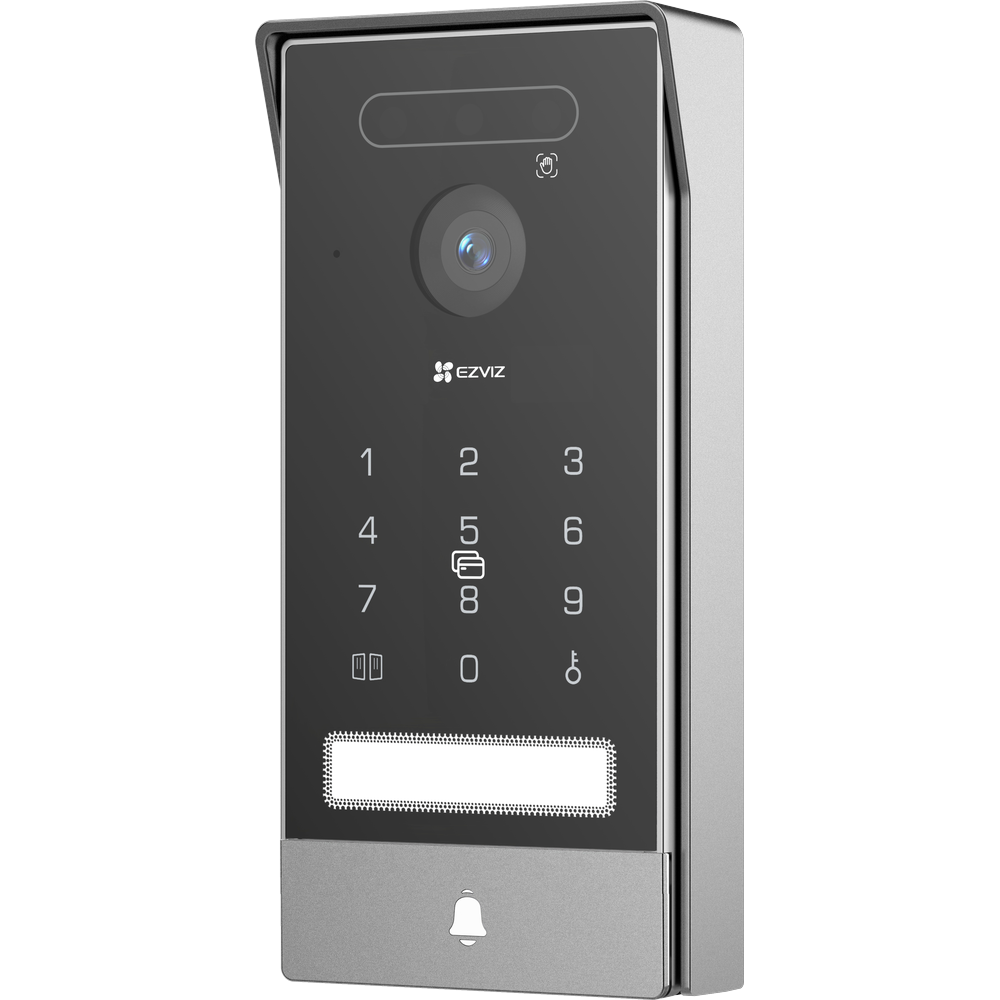

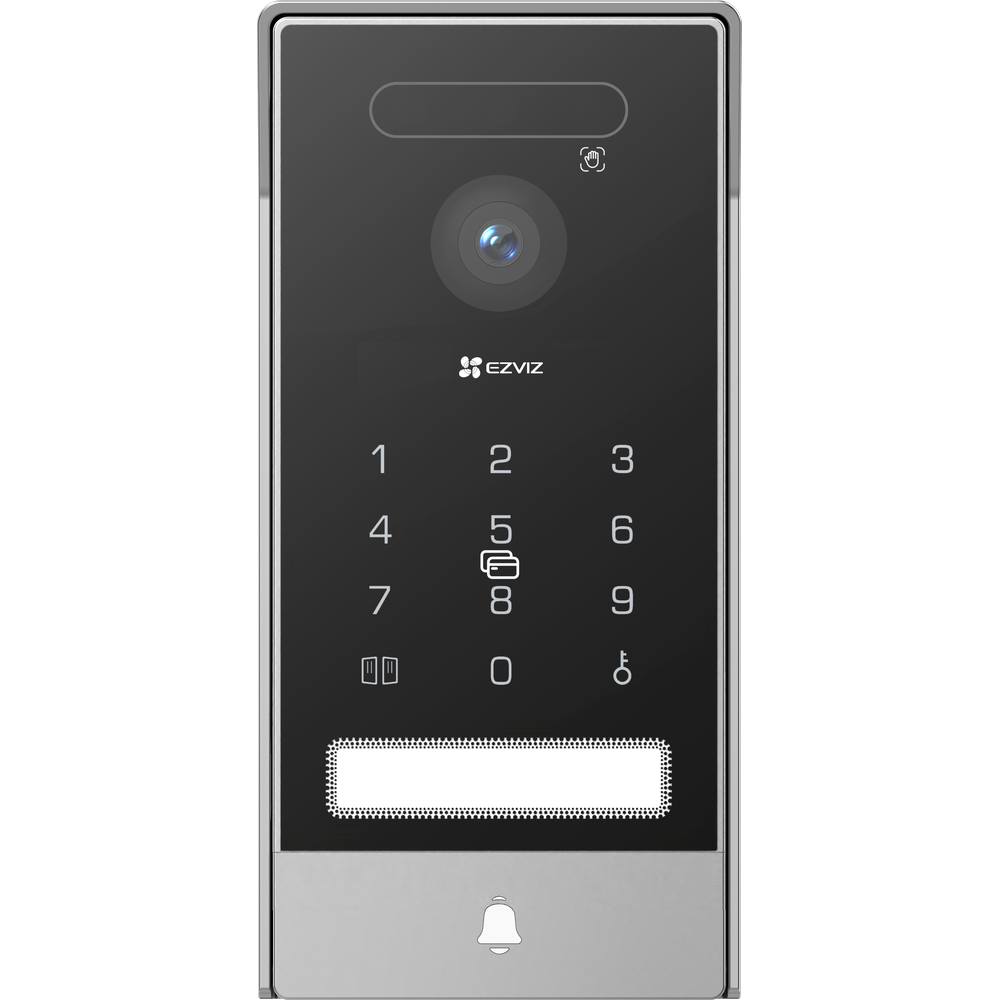

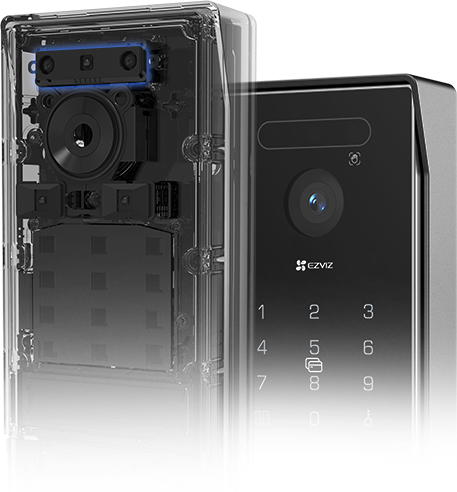

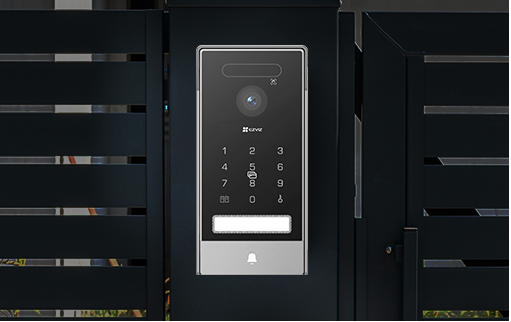

Outdoor Panel Parameters

Image Sensor

1/2.8" Progressive Scan CMOS (supports low light sensitivity)

Lens

2.0 mm @ F1.6,view angle: 158° (diagonal)

Day & Night

IR-cut filter with auto-switching

Max. Resolution

4K (3840 × 2160)

DNR

2D / 3D DNR

Video Compression

H.265 / H.264

Frame Rate

Max: 15fps; Self-adaptive during network transmission

Connection and Function

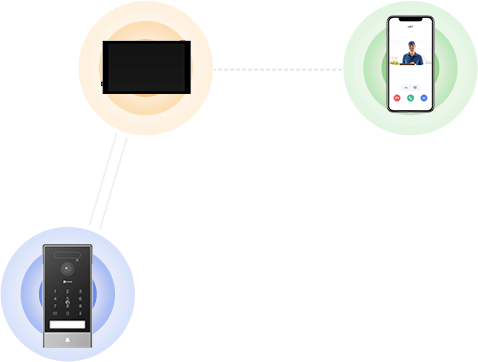

Connection Method

Wired connection (2-Wired, capable with 4-Wired), digital signal transmission

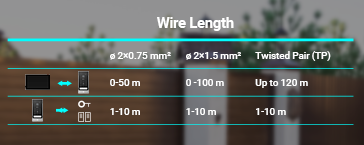

Transmission Distance

Φ 2 x 0.75mm , max. 50m Φ 2 x 1.5mm , max. 100m

Open the Door (Gate)

Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A

Unlock (Electric strike plate)

Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual.

Door Open Methods

1. Palm vein scan unlocking 2. Face recognition unlocking 3. RFID badge unlock (CPU card × 3 pcs) 4. App remote unlocking 5. Indoor display unlocking 6. Passwords unlocking 7. QR code unlocking

Outdoor Doorbell Interface

Audio Input

Built-in high-sensitivity microphone

Audio Output

Built-in high-power speaker

Doorbell Button

Supports, 1 button. Can set the light on or off.

Name Card

Supports, handwritten. 3 cards stickers included (1 sticker already on the intercom panel). Can set the light on or off.

Terminal

Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate.

Functions

Intelligent Alarm

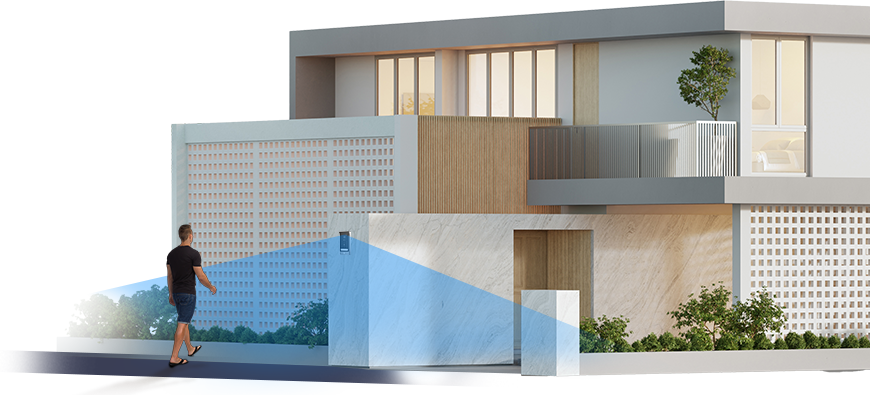

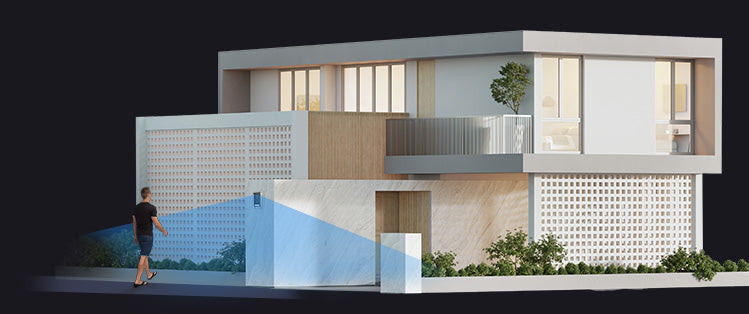

Smart human motion detection, Lingering Detection

Tamper Alarm

Supports

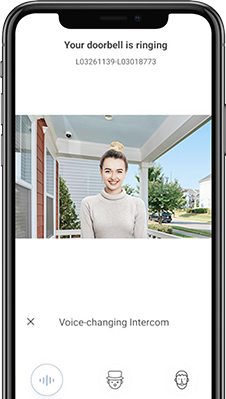

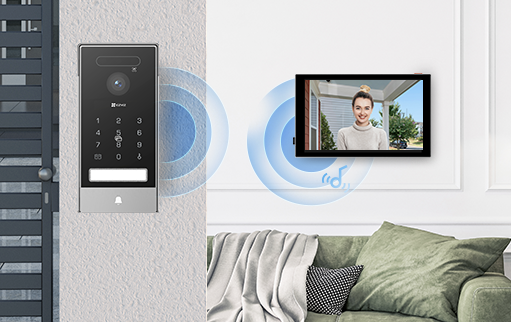

Video Intercom

Long-distance video two-way talk

General (Ourdoor Panel)

Operation Conditions

-30°C to 60°C , humidity 95% or less (non-condensing)

Ingress Protection Grade

Waterproof, with shield cover

Size

191.8 × 91 × 40 mm (7.6 × 3.6 × 1.6 inch)

Power Supply

24 V DC from screen

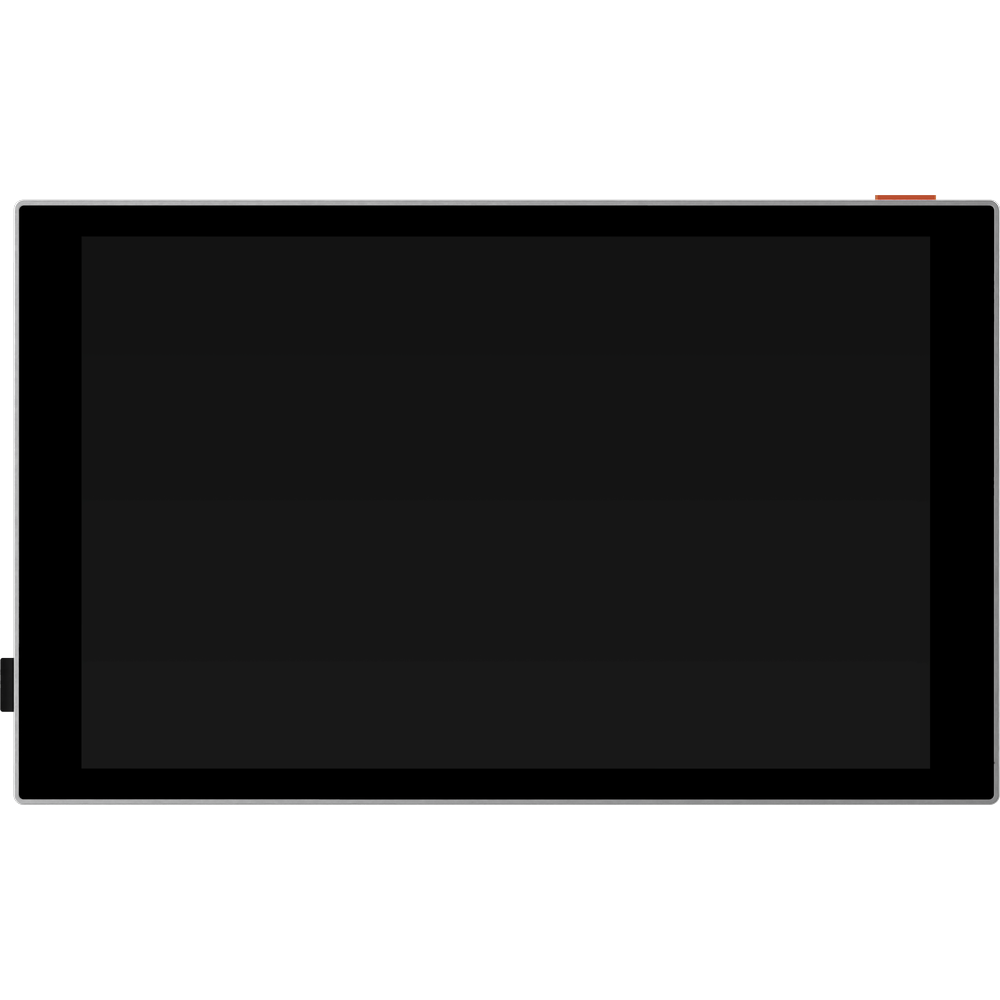

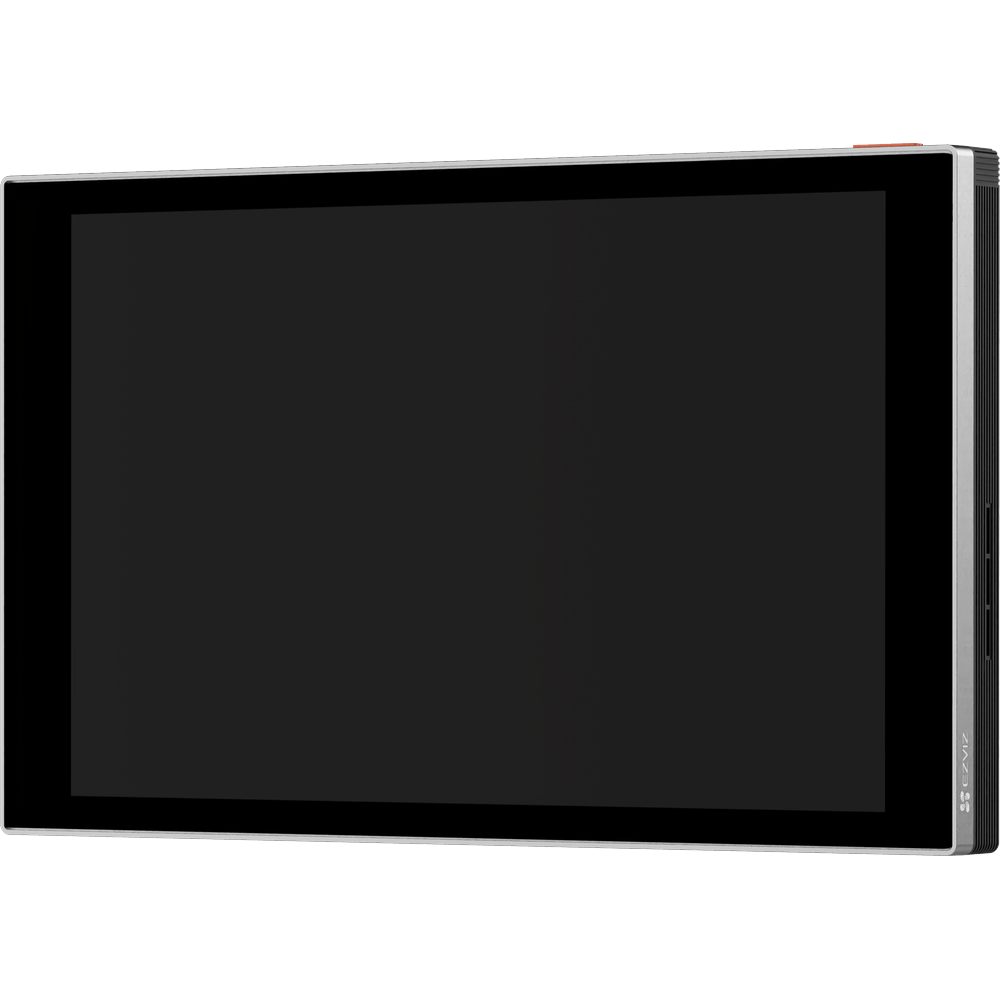

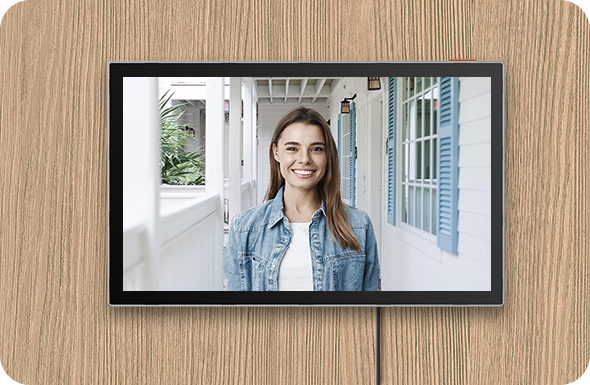

Indoor Monitor

Display size

8” touch screen

Resolution

1280 × 800

Interface

Audio Input

Built-in high-sensitivity microphone

Audio Output

Built-in high-power speaker

Button

Screen on / off button

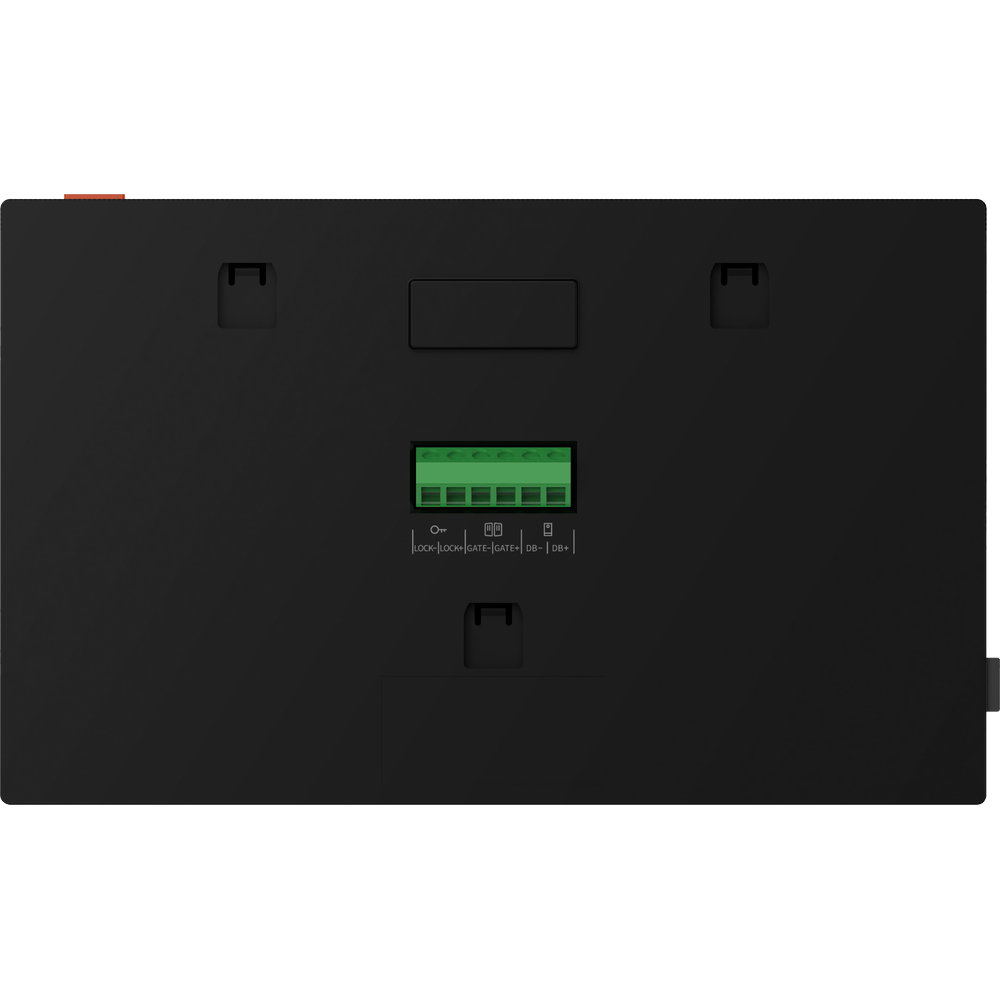

Terminal

Two wiring ports are available for connecting the outdoor doorbell. Two wiring ports are available for connecting the power supply.

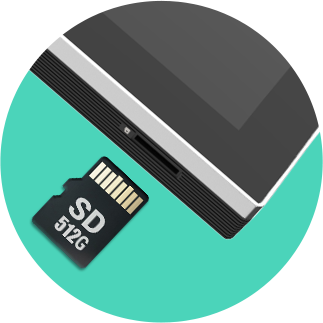

MicroSD Card

Supports microSD card (max. 512 GB)

Network Parameters

Protocol

EZVIZ Cloud Proprietary Protocol

Interface Protocol

EZVIZ Cloud Proprietary Protocol

Protocol

EZVIZ Connect Protocol

Wi-Fi Parameters

Wi-Fi Standard

IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax

Frequency Range

2.4 GHz ~ 2.4835 GHz; 5.15 GHz ~ 5.35 GHz; 5.47 GHz ~ 5.725 GHz

Channel Bandwidth

Supports 20 MHz @ 2.4 G, supports 80 MHz @ 5G

Security

WPA / WPA2 / WPA3, WPA-PSK / WPA2-PSK / WPA3-PSK

Transmission Rate

11b: 11 Mbps, 11g: 54 Mbps,11a:54 Mbps, 11n: MCS7, 11ac:MCS9, 11ax:MCS11

General (Indoor Monitor)

Multiple Ringtones

Up to 20 ringtones

Functions

Live view, playback, two-way talk, video calL

Operation Conditions

10°C to 45°C, humidity 95% or less (non-condensing)

Size

200.3 × 123 × 15 mm (7.9 × 4.8 × 0.6 inch)

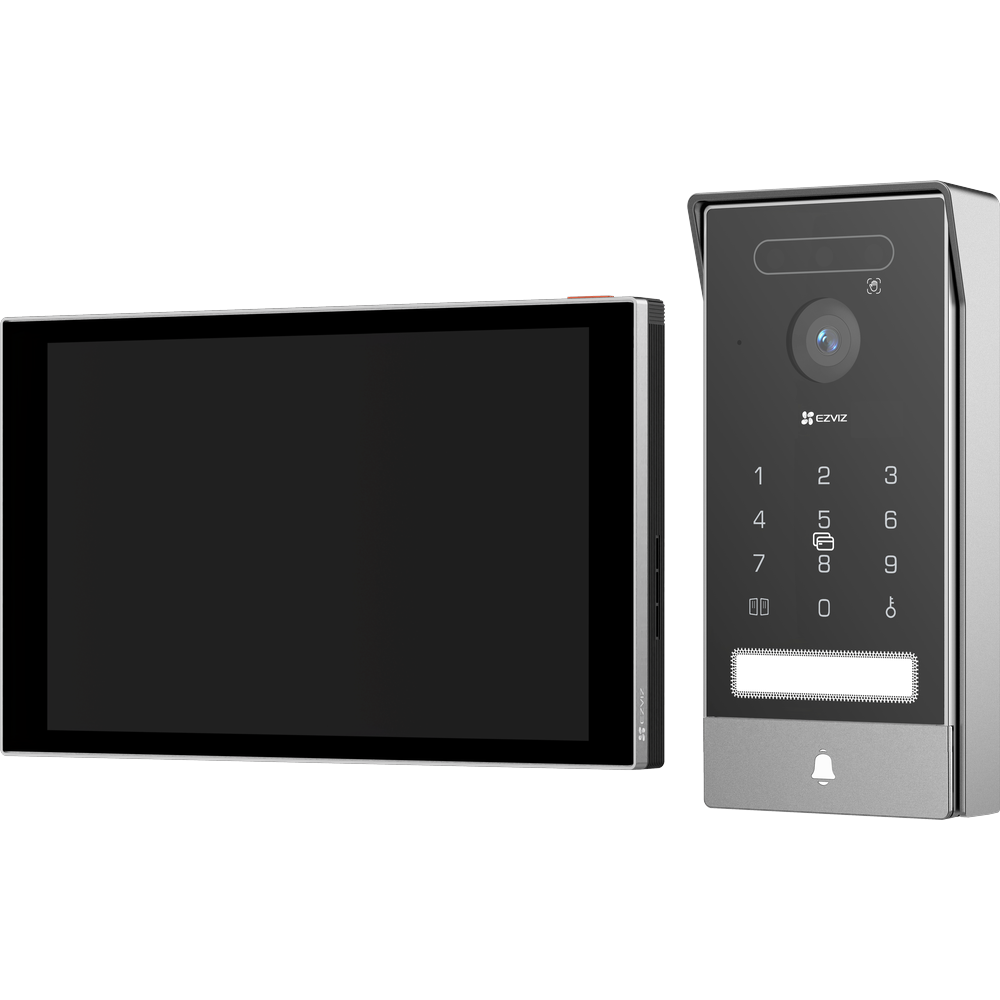

General (HP7 Pro Kit)

Weight

Net weight: 1130 g (39.9 oz) With package: 2418 g (85.3 oz)

Power Supply

DC 24V / 1A power supply, adaptor (100- 240Vac

Power Consumption

8 W, Max. 36 W

In the box

In the box

- 8" Touch Screen Monitor
- Wall Bracket for Monitor
- Power Adapter for Monitor
- Intercom Panel (Doorbell) with a Weather-Proof Shield
- Drill Template for Intercom Panel
- Drill Template for Monitor
- Screwdriver
- Power Supply Jack Connector Cable
- Badges × 3
- Screw Kit × 2
- Name Card × 3
- Wires and Wire Connectors × 2
- Regulatory Information × 3
- Quick Start Guide

Certifications

Certifications

CE / REACH / WEEE / RoHS
