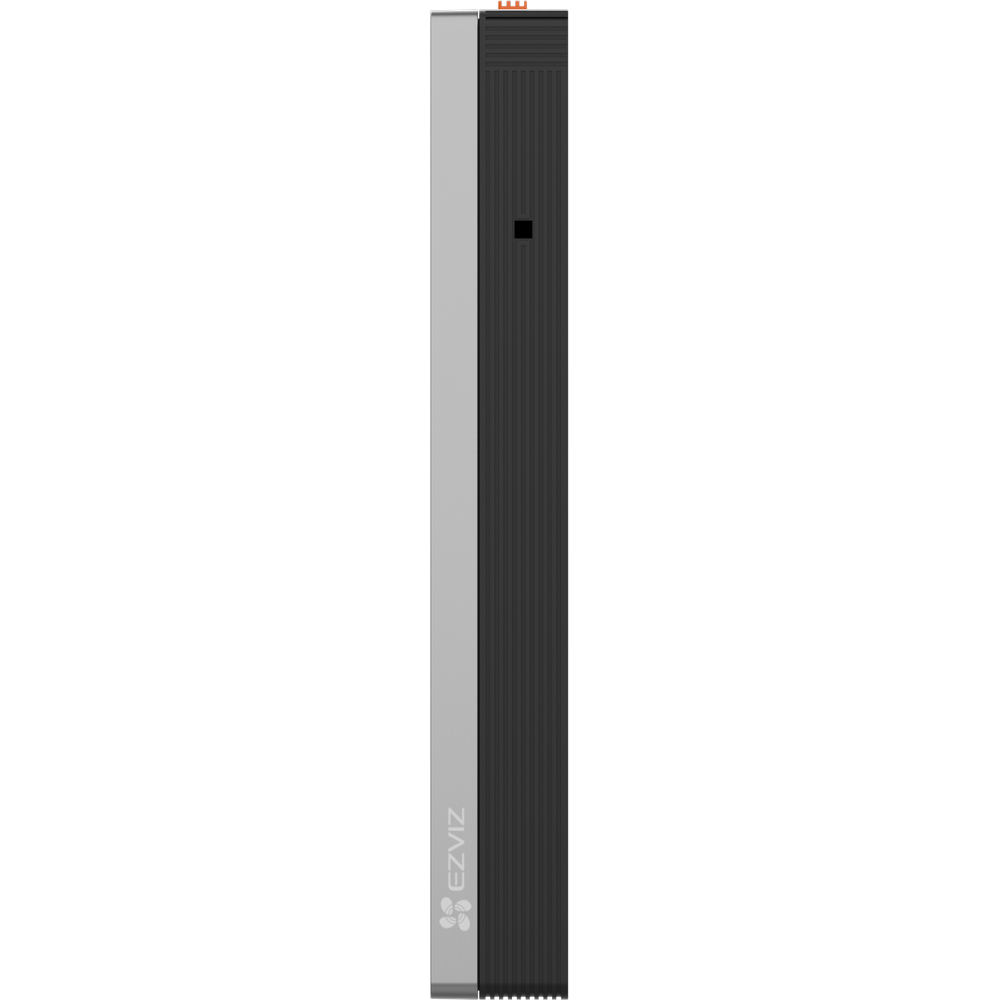

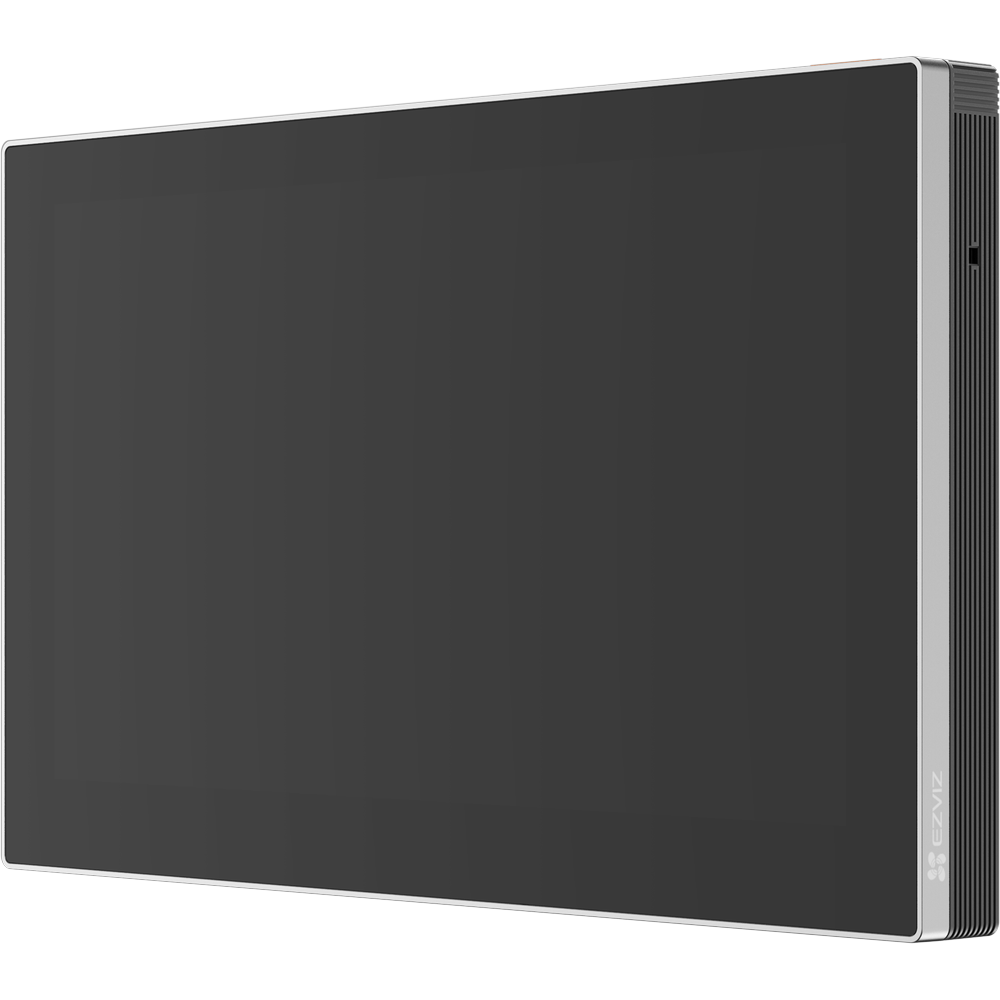

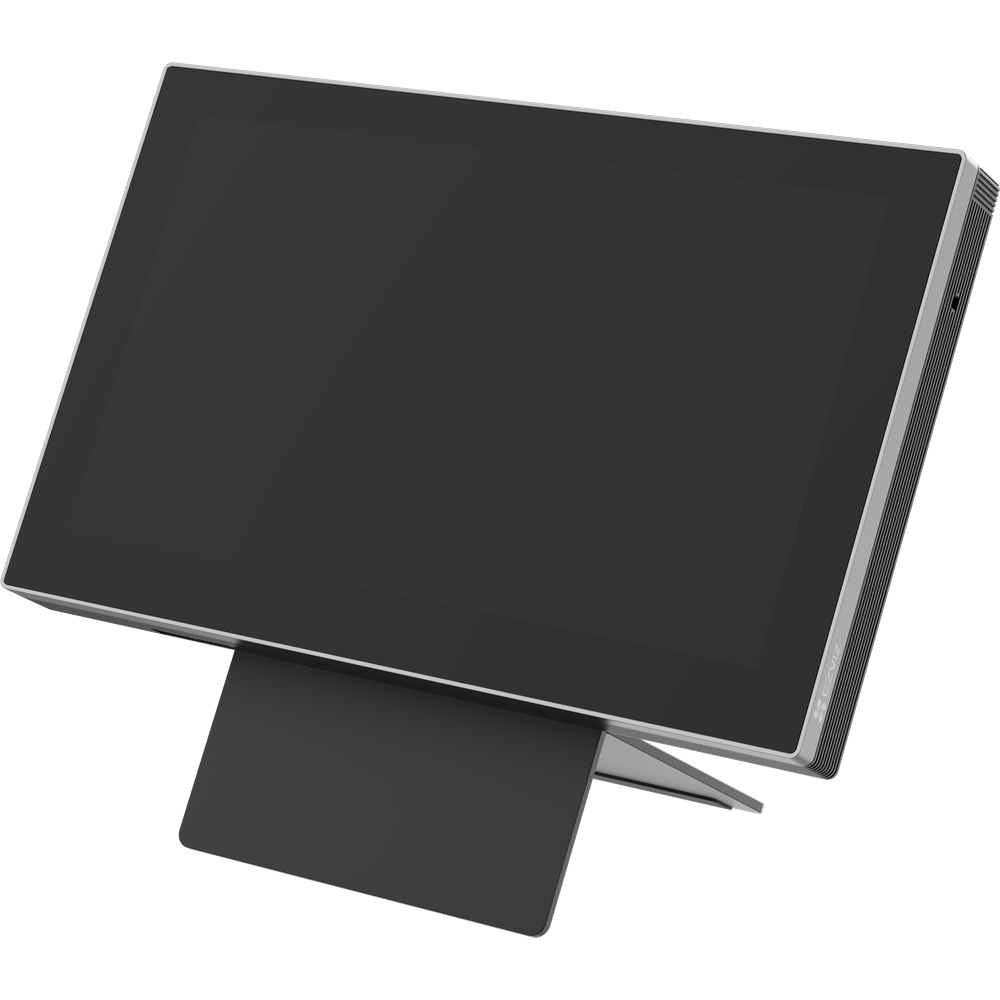

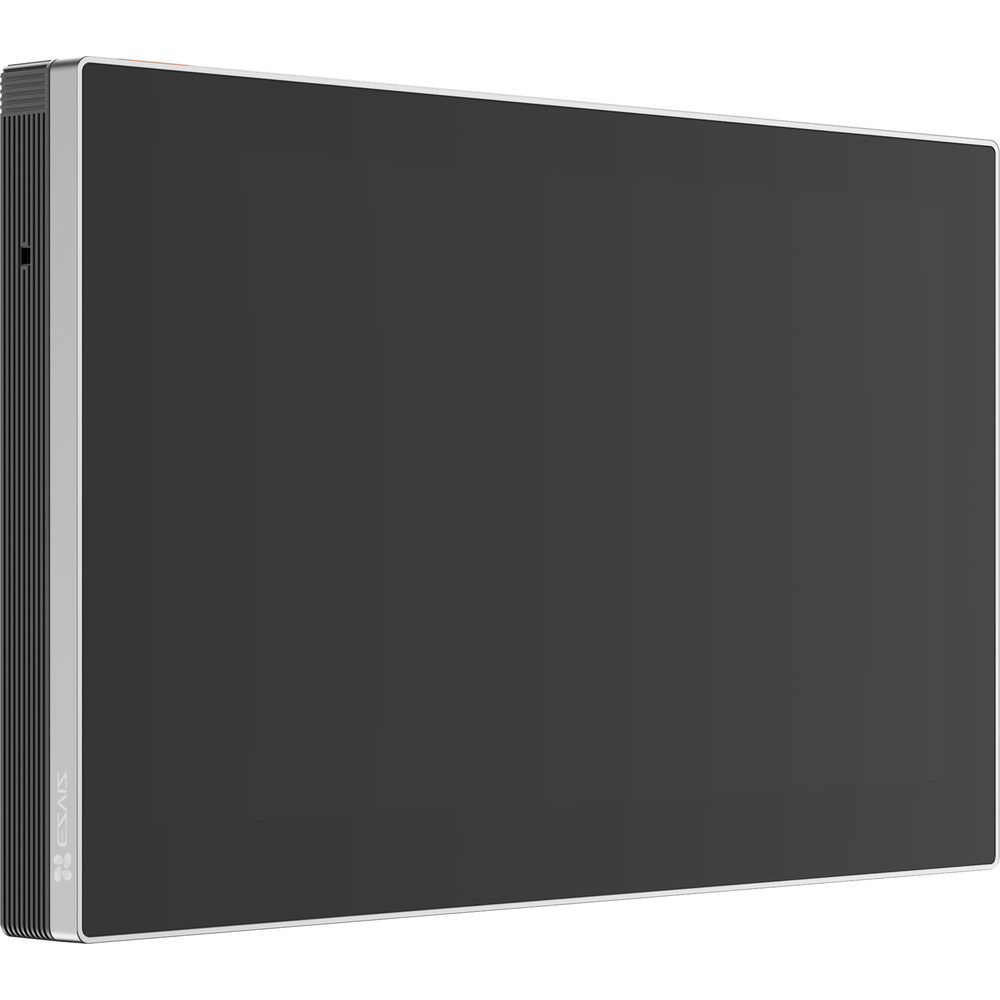

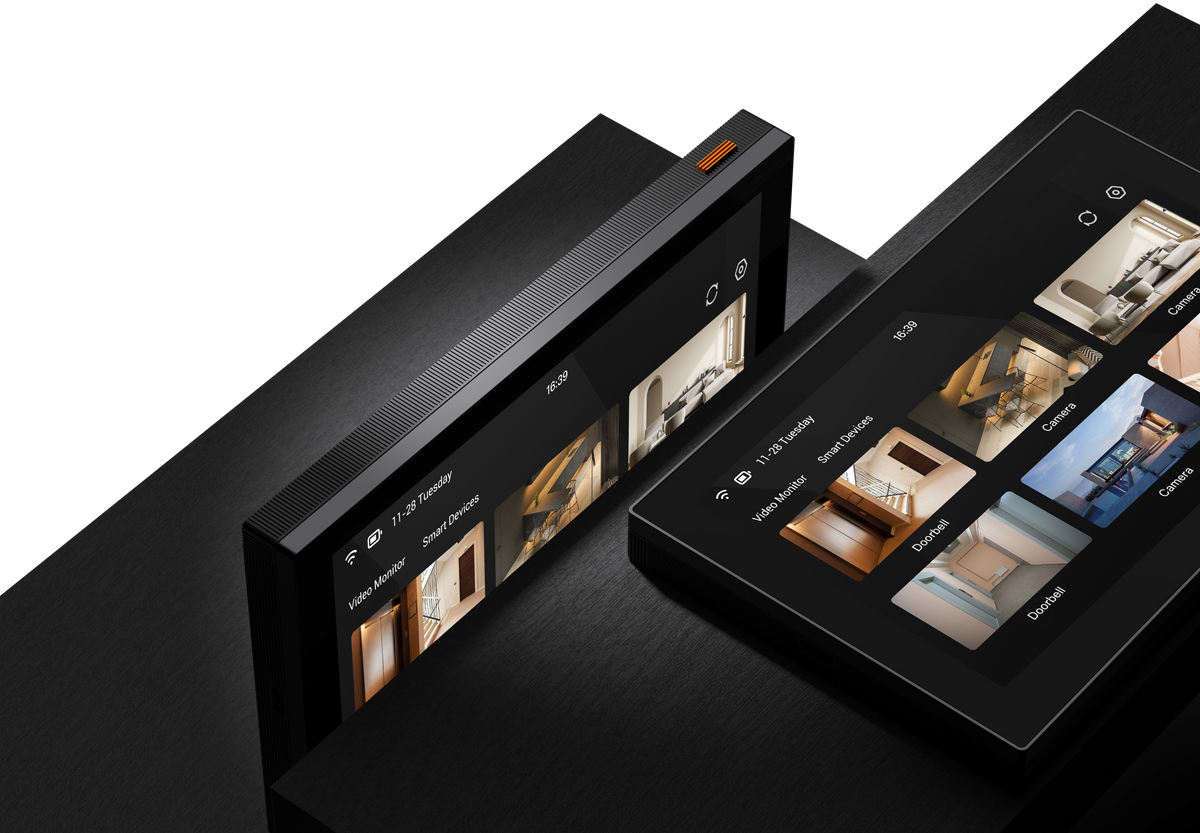

EZVIZ SD7 Smart Screen

EZVIZ SD7  Smart Screen

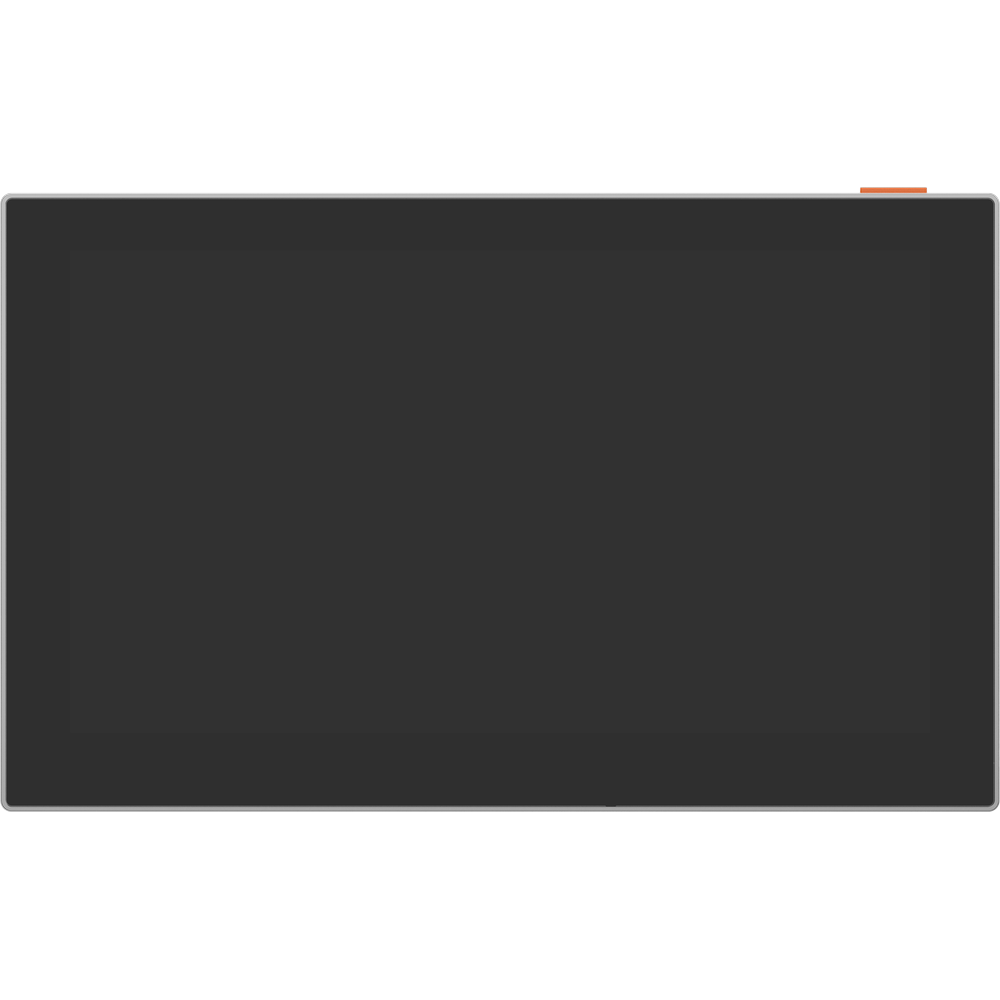

  • 7-Inch IPS Touch Screen
  • Smart Integration with EZVIZ Devices

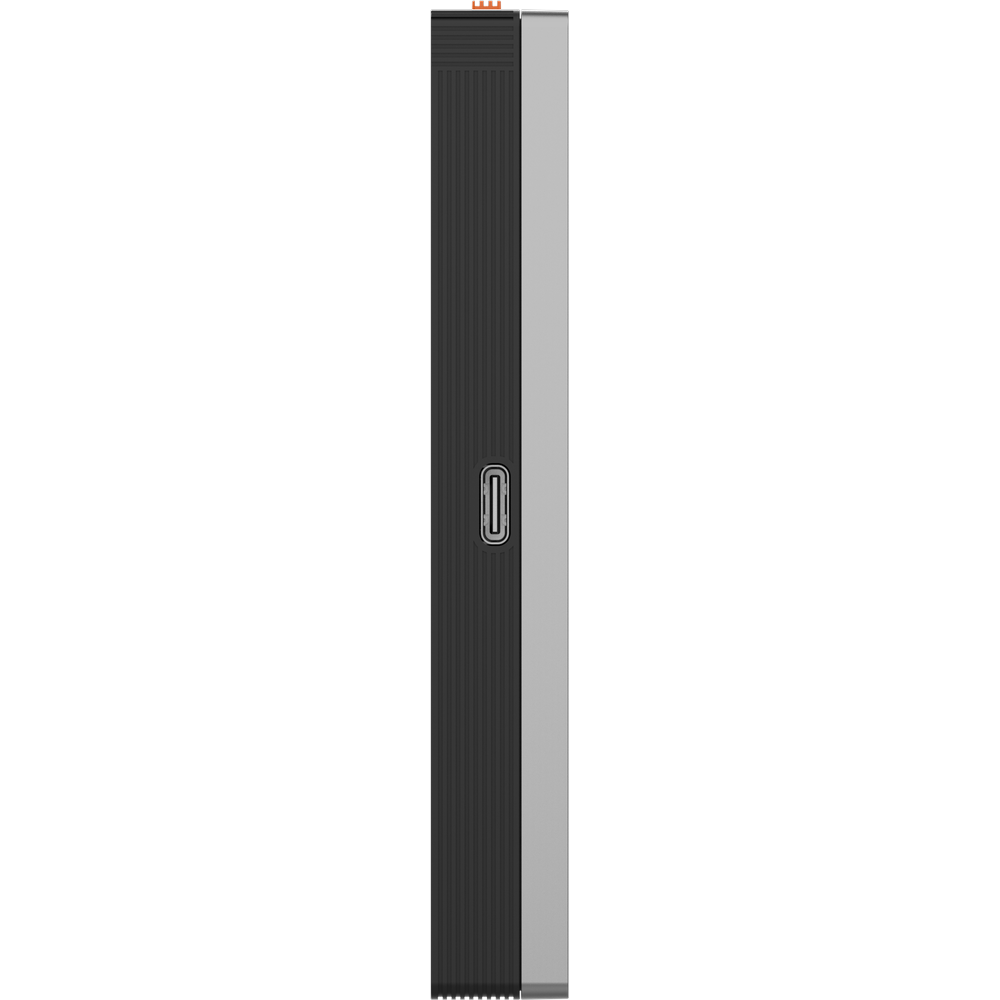

  • 4,600 mAh Rechargeable Lithium Battery (Type-C charging)

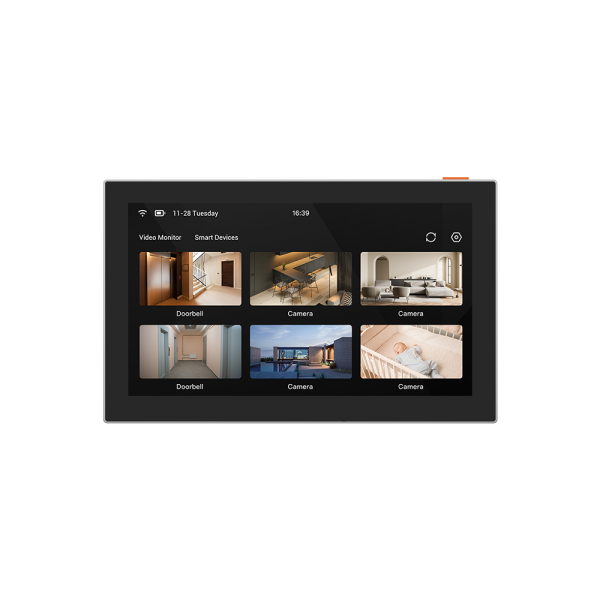

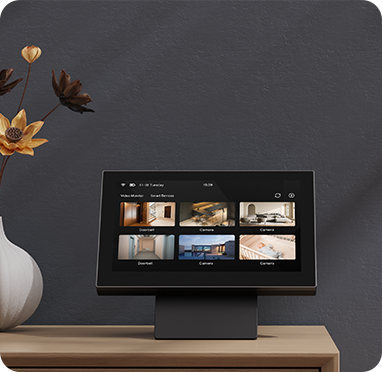

  • Live View & Playback
  • Remote Control via EZVIZ App

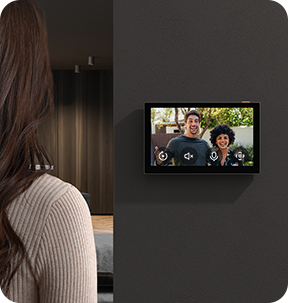

  • Two-Way Talk
  • 2.4 GHz Wi-Fi

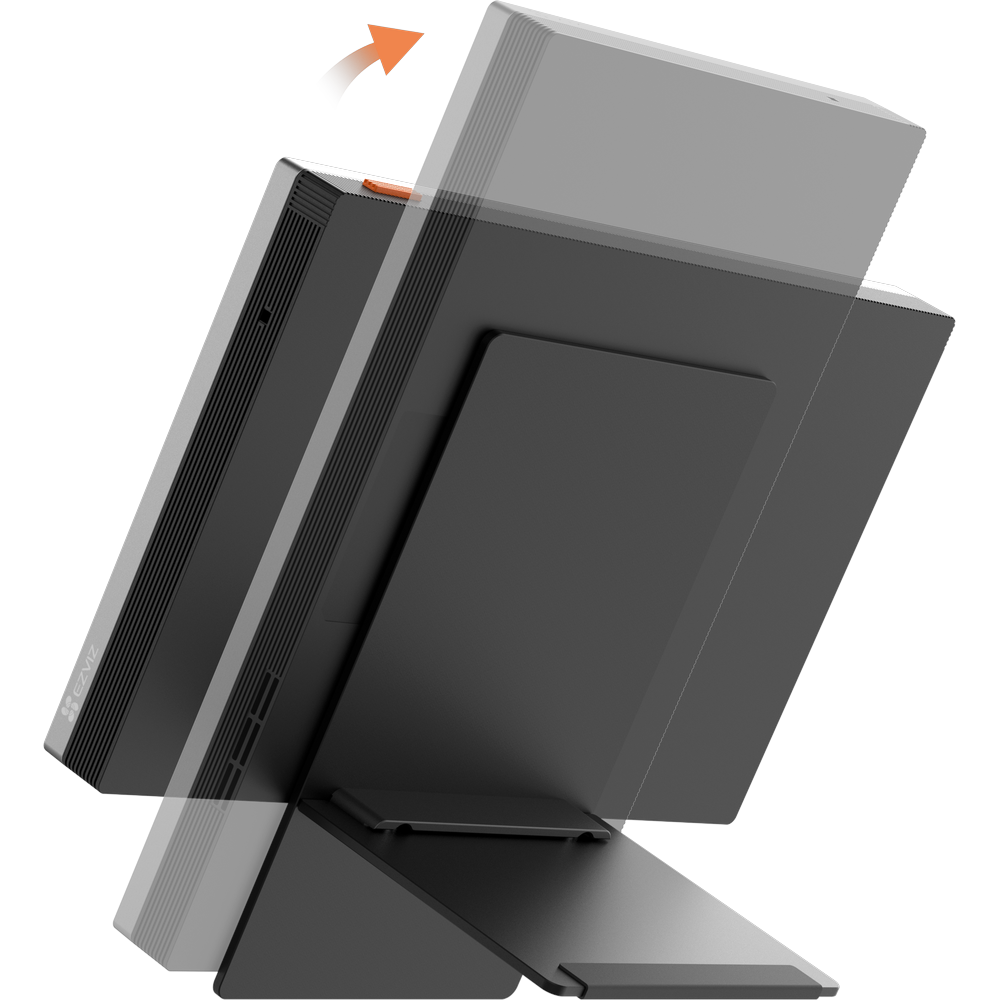

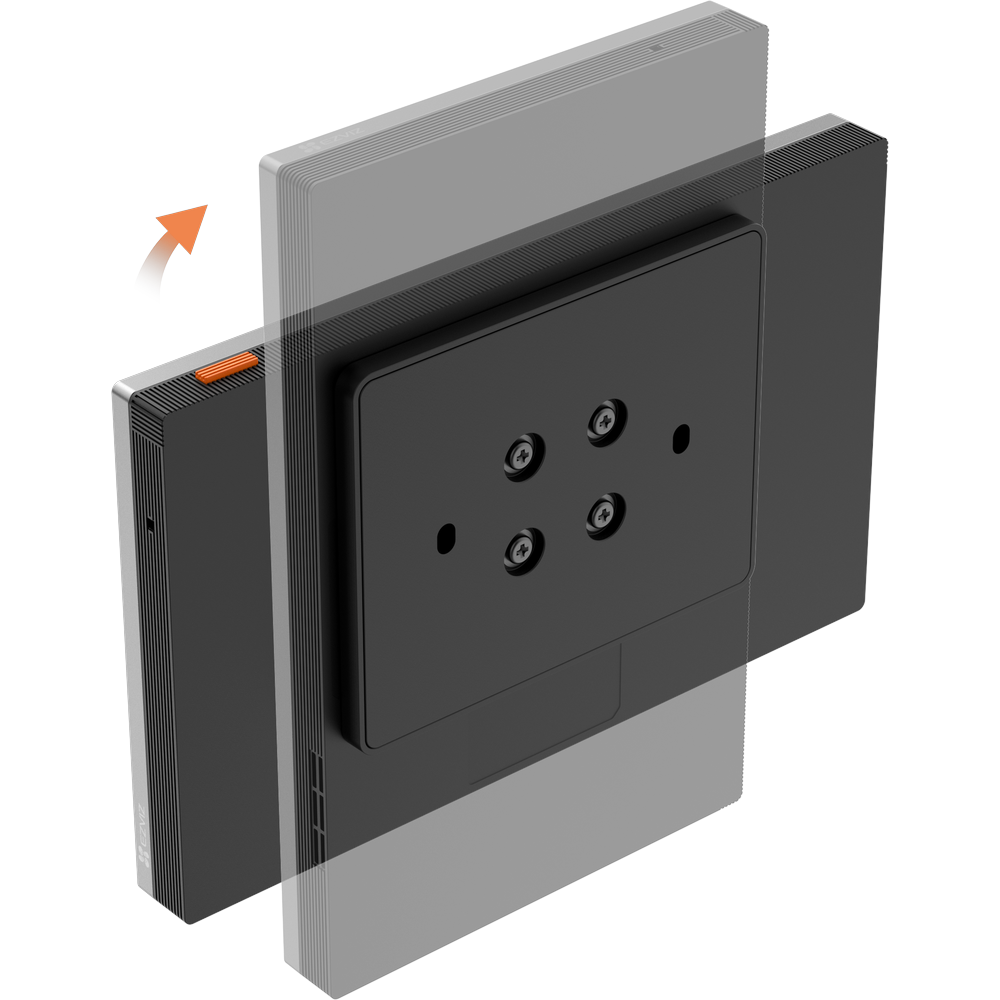

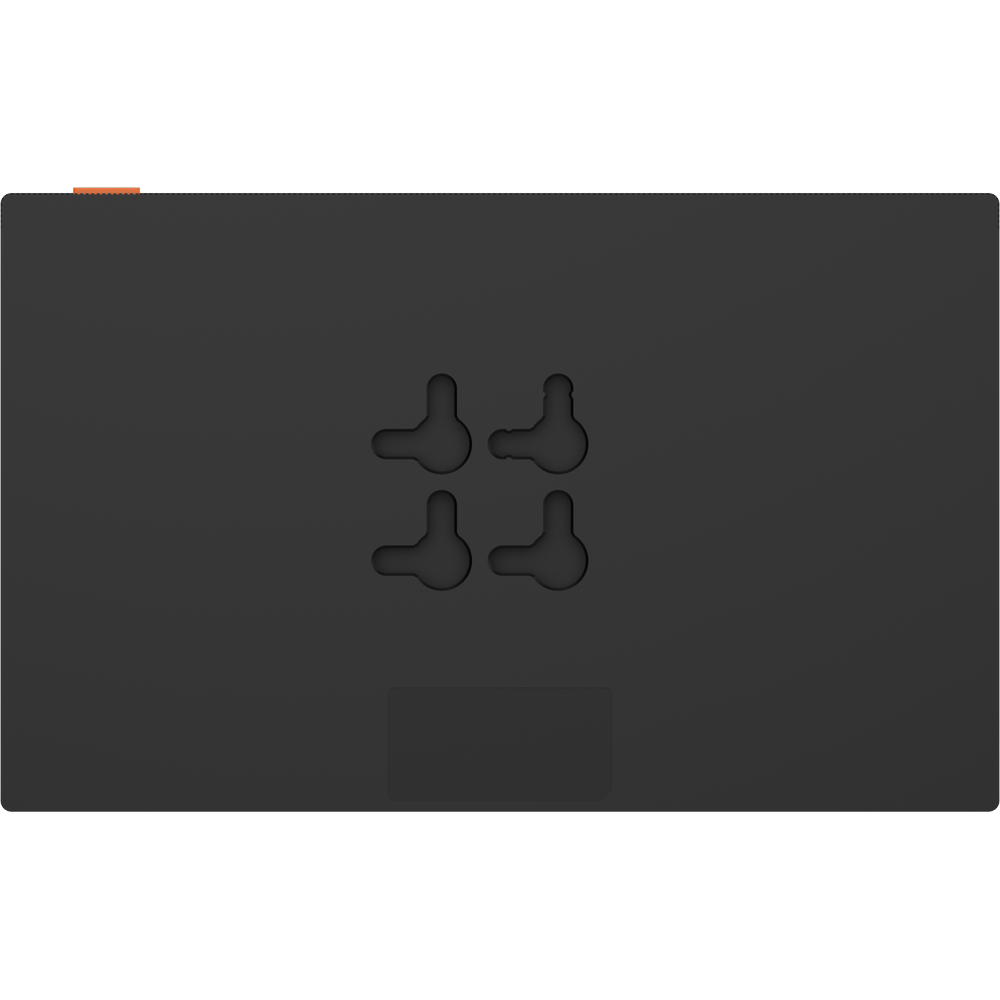

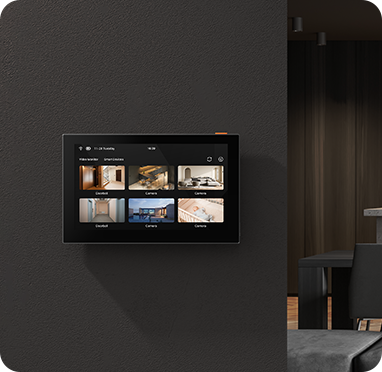

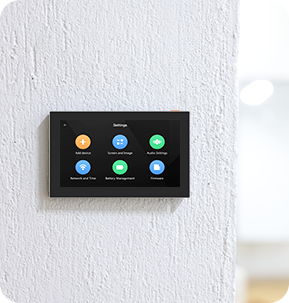

  • Easy Installation


Specifications

Model

CS-SD7-R100-1WTC

Screen

Screen size

  • 6.97 inch

Resolution 1024 × 600

Touch Screen

  • Supports

Screen Type IPS Full Screen

Battery

Battery Capacity

  • 4600 mAh
Interface

Audio Input Built-in high-sensitivity microphone

Audio Output Built-in high-power speaker

Button

  • One-switch button
Connectivity

Maximum Access Pixels

  • Up to 30 EZVIZ Devices (Supports more devices with future OTA upgrade)

Connected Device

  • 4K (Playback supports 5MP maximum)

Protocol EZVIZ Cloud Proprietary Protocol

General Function

  • Live View, Video Playback, Cloud Video Encryption
Wireless Parameters

Wireless Standard

  • IEEE802.11b, 802.11g, 802.11n

Frequency Range

  • 2.4 GHz ~ 2.4835 GHz

Safety

  • 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK, WPS

Transmission Rate

  • 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
General Specification

Operating Temperature

Operating Humidity

  • less than 95% (No condensation)

Product Size 180.3 × 111.6 × 15.6 mm (7.10 × 4.39 × 0.61 inch)

Certifications

Certifications CE / WEEE / RoHS / REACH

  • The SD7 currently can connect up to 30 EZVIZ devices at the same time. The list of connected products and the number of connected EZVIZ devices will be extended via OTA in the near future. Please verify product compatibility before purchasing.
